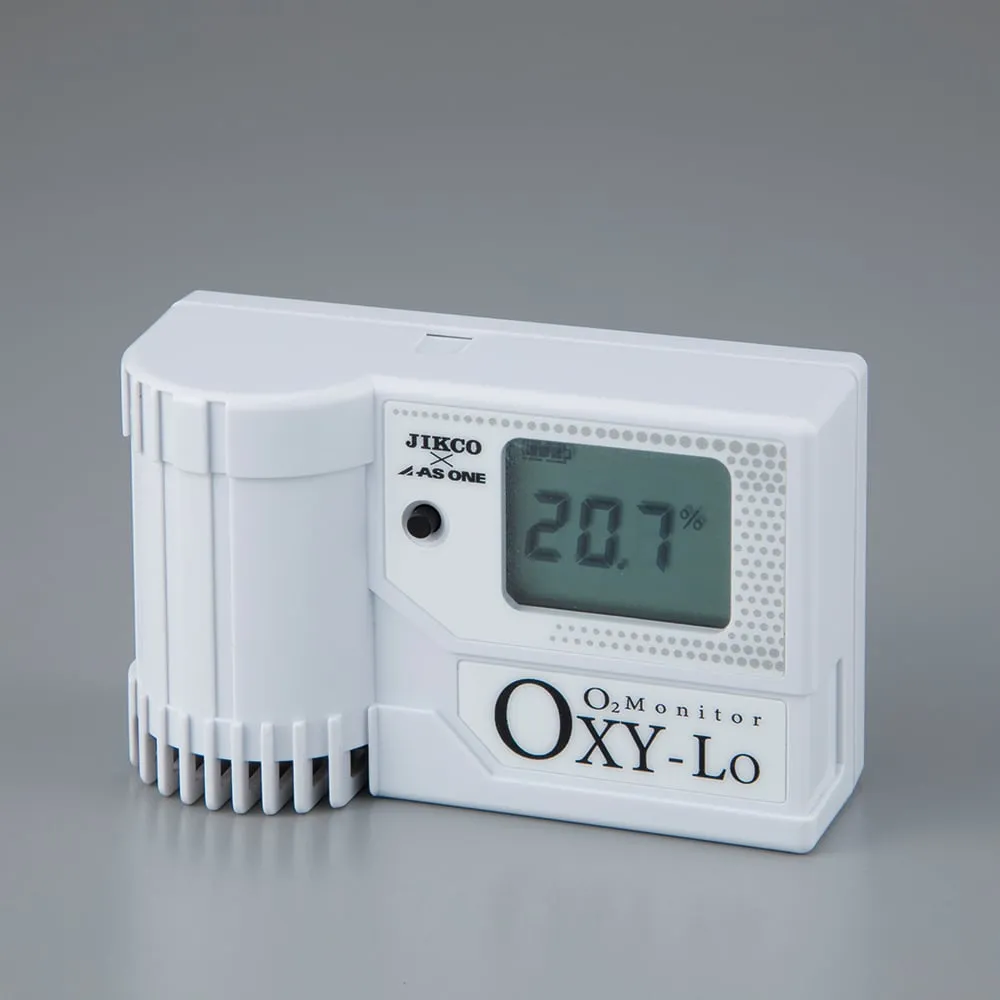

68-1887-39 Oxygen concentration meter (high precision sensor built-in type) OXY-Lo
Product Description
Product Model: 68-1887-39Product Brand: ICHINEN JIKCO L […]
Contact Us
Product Details
Product Model: 68-1887-39
Product Brand: ICHINEN JIKCO Ltd.
Spec
- Measurement principle: galvanic battery type
- Response speed: 5 seconds or less (90% response) (Air <20.7%O2>→2.07%O2 * under manufacturer's measurement conditions)
- Measurement Accuracy: ±0.1%O2 (Oxygen Concentration < 10% Oxygen)/±0.5%O2 (Oxygen Concentration ≥ 10% Oxygen)
- Battery Life: Approx. 4,400 Hours (Reference Value, Frequency of Span Adjustment, Operating Temperature, etc.)
- Measured value display: LCD3 digits
- Resolution: 0.01% (0.00 ~ 9.99%), 0.1% (10.0 ~ 30.0%)
- Sensor life expectancy: Approx. 2 years in air (may vary dep***ing on operating environment)
- Power supply: 2 AAA alkaline batteries (included for testing)
- Exterior Case Material: ABS Resin
- Size: 88 x 35 x 55 mm (excluding protrusions)
- Weight: 125 g
Related product recommendations
You may also be interested in the following products
toner

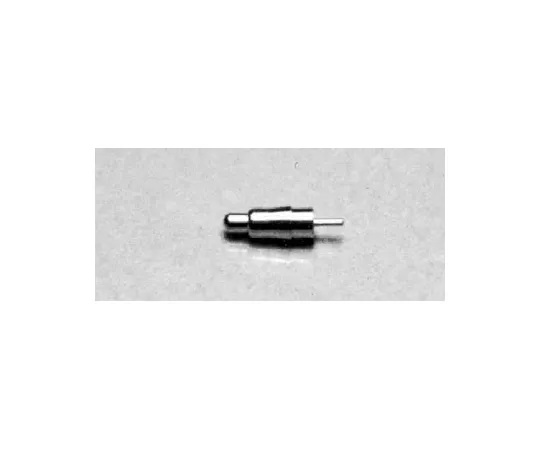

63-3031-62 ［Discontinued］Bean Spring Probe VN Series (10 pieces) VN-3-1*10
