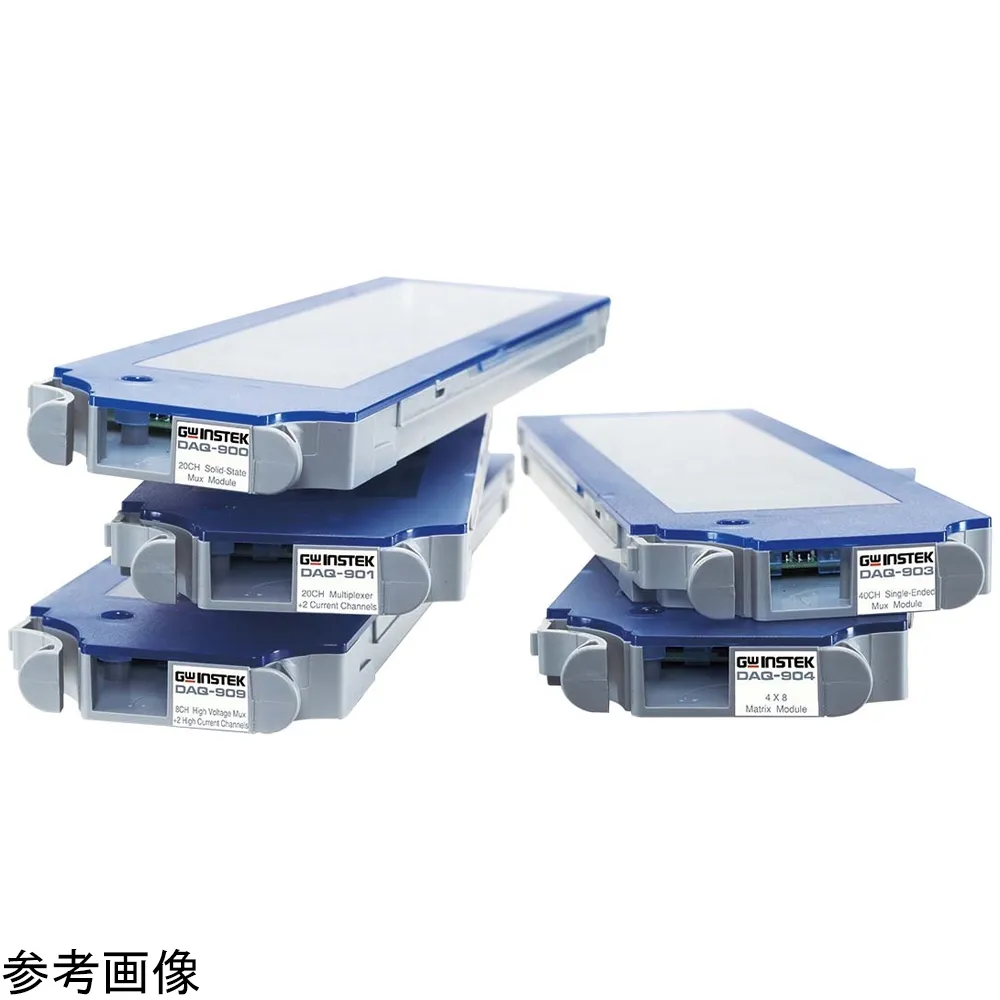

68-1405-97 Data Acquisition System (Plug-in Scan Module) 20+2 Channel Universal Multiplexer DAQ-901
Product Description
Product Model: 68-1405-97Product Brand: TEXIO TECHNOLOG […]
Contact Us
Product Details
Product Model: 68-1405-97
Product Brand: TEXIO TECHNOLOGY
Features
- It is a multiplexer module that supports many measurement functions and is widely ***d.
- It has two groups for 2-wire and 4-wire measurement.
- Two current-only input channels can be ***d for AC and DC current measurements without an external shunt resistor.
- Allows 2-wire and 4-wire scanning
- Two channels for current measurement are provided (1A/ch).
- Built-in thermocouple reference contact
Spec
- 20+2 channel Universal Multiplexer
- Scan speed: 80ch/sec at maximum
- Maximum voltage: 300 V
