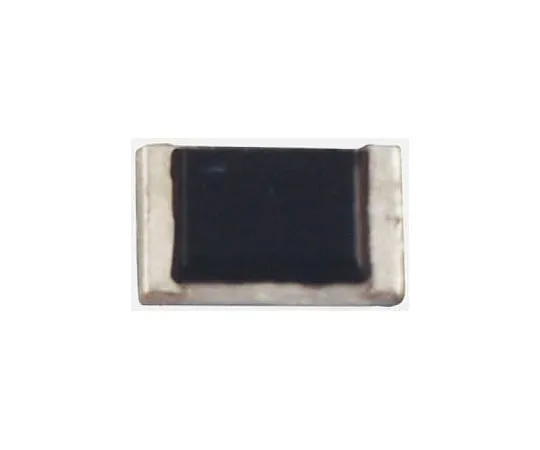

63-4744-82 TE Connectivity NTC0805J1K0 Thermistor 0805 (2012M) 1kΩ, 2 x 1.25 x 0.5mm NTC0805J1K0
model:
63-4744-82
brand:
TE Connectivity
Product Description
Product Model: 63-4744-82Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4744-82
Product Brand: TE Connectivity
Features
- NTC0805 Series SMD. NTC chip thermistors offering a high thermal sensitivity in a standard 0805 case size Suitable for temperature compensating circuits and other applications requiring a resistance that varies according to the ambient temperature The thermistor should be derated linearly from 100% at 55°C to zero at 125°C These components are supplied unmarked, on 8mm wide tape Optimum working dissipation 1mW Dimensions L.2, W.1.25
Spec
- Quantity：1bag(10pieces)
- Series : NTC0805
- Temperature Coefficient Type : NTC
- Thermal Time Constant : 4s
- Resistance @ 25 °C : 1kΩ
- Tolerance : ±5%
- Application : Compensation
- Package/Case : 0805 (2012M)
- Accuracy : ±5%
- Maximum Power Rating : 125mW
- Length : 2mm
- Depth : 1.25mm
- Height : 0.5mm
- Dimensions : 2 x 1.25 x 0.5mm
- Minimum Operating Temperature : -55°C
- CODE No.:247-7301
