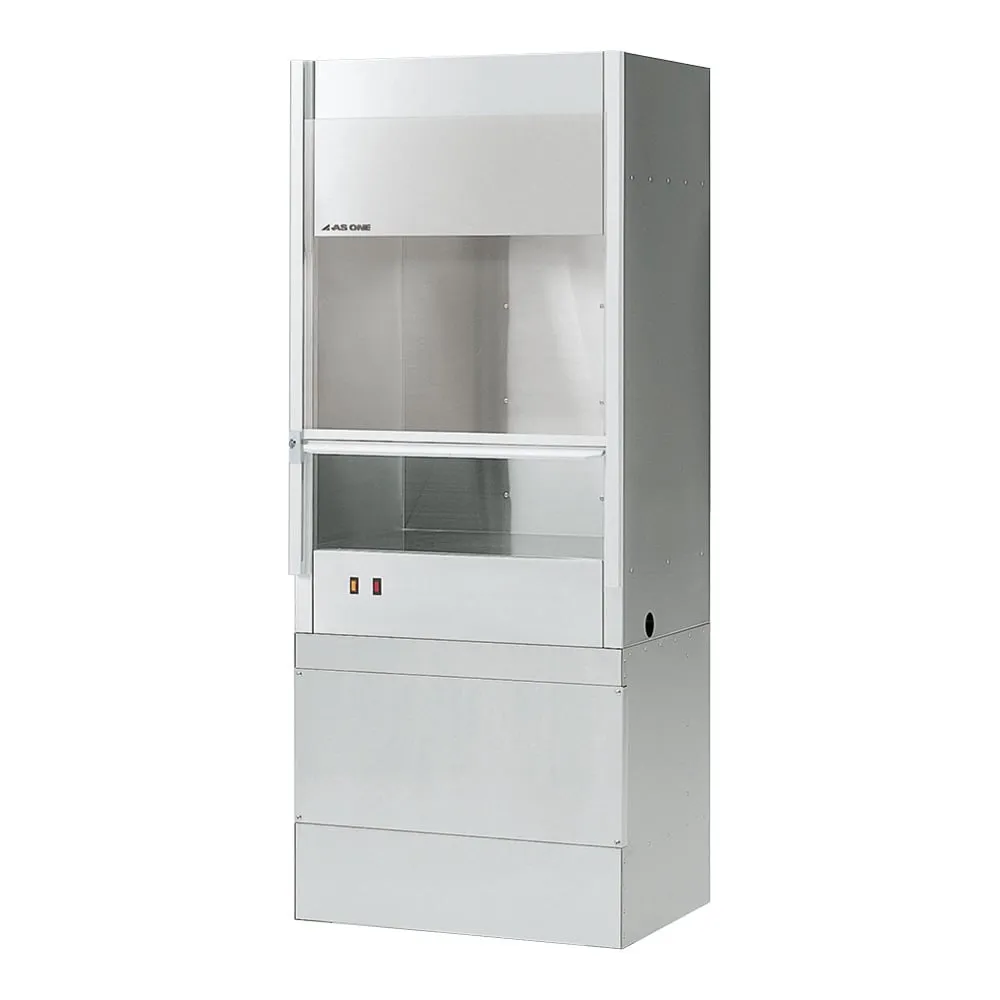

3-1372-11 Lab Draft (SUS W700 Type with dry type Scrubber) ZSF-700UC
Product Description
Product Model: 3-1372-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-1372-11
Product Brand: AS ONE Corporation
Features
- Stainless steel draft with exhaust fan and dry scrubber as a set.
- It's compact size, so it doesn't take up much space.
Spec
- external dimension (mm): 700 x 625/500 x 1800
- main body material : Stainless steel (SUS304)
- Sash: 4 mm Thick Transparent tempered glass Balance Weight Type w/Opening Restriction Key (300 meters high.)
- Lighting: LED fluorescent lamps (Equivalent to one 15 W lamp)
- Service Outlet: None
- power cord: 2.5 m Ground 2P Plug with OA adapter
- Vent: Φ 97 mm
- Exhaust Fan: Metal Fan 120 SL -100 Single Phase 100 V 0.4 kW
- Exhaust fan operation volume: approx. 65 dB
- Scrubber: Activated carbon filter x 12 pieces (Activated charcoal Weight: about 9.6 kg) ***d
- *Dep***ing on the distance of the exhaust duct and the number of turns, the fan ability may be insufficient.
Related product recommendations
You may also be interested in the following products
gasmonitors

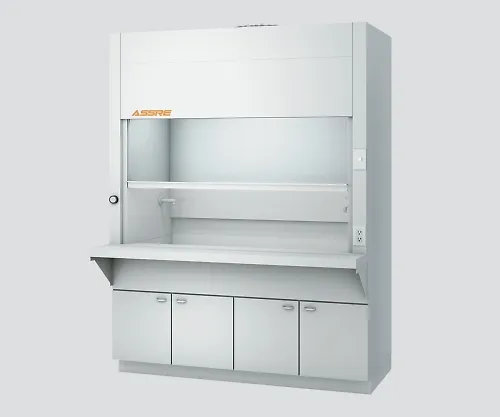

3-3984-01 ［Discontinued］Fume Hood Heat Resistance, Acid Hydrolysis Type Single-Sided Type 1200 x 800 x 2200 AVB-1200
