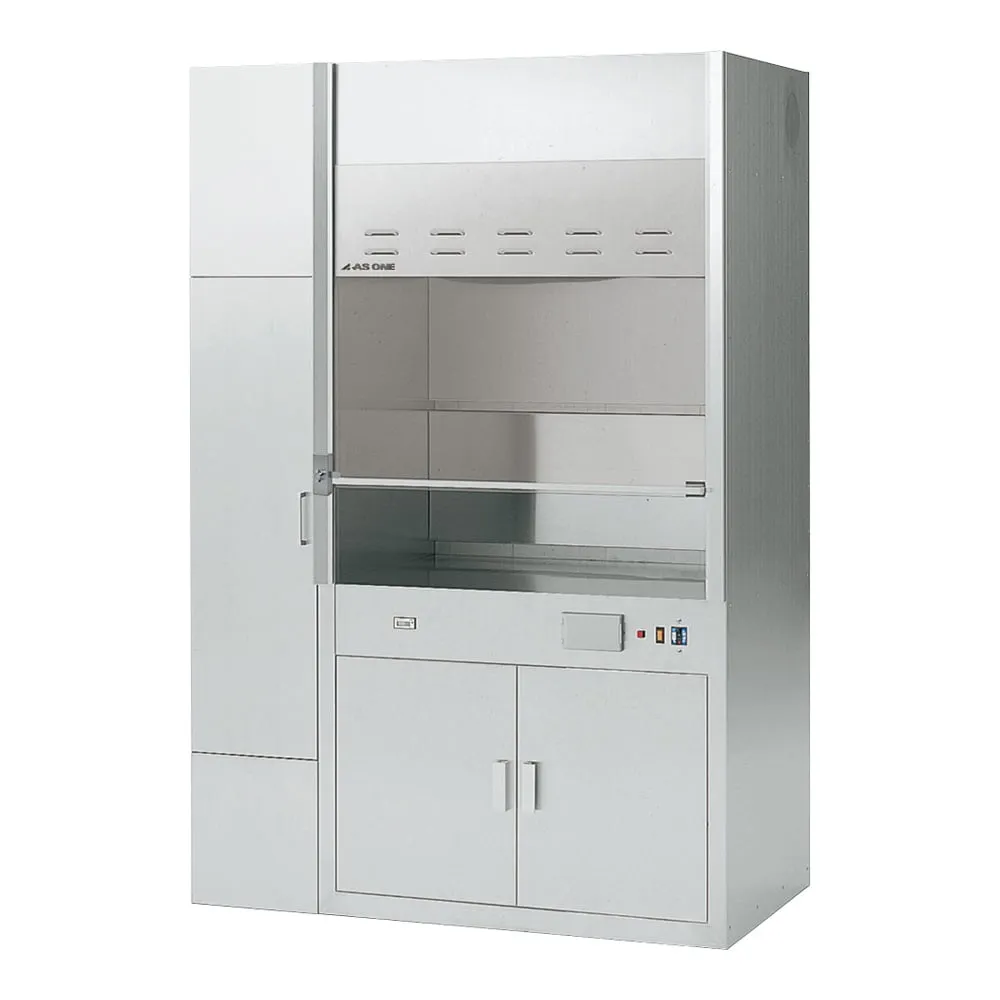

3-1371-11 Lab Draft (SUS W900 Type with dry type Scrubber) ZSF-900UC
Product Description
Product Model: 3-1371-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-1371-11
Product Brand: AS ONE Corporation
Features
- Compact stainless steel draft with exhaust fan and dry scrubber as a set.
- It is made of stainless steel, making it suitable for working with organic solvents.
Spec
- external dimension (mm): 1200 x 745/650 x 1800
- main body material : Stainless steel (SUS304)
- Sash: 4 mm Thick Transparent tempered glass Balance Weight Type w/Opening Restriction Key (300 meters high.)
- Lighting: LED fluorescent lamps (Equivalent to one 15 W lamp)
- Service Outlet: AC100V 15 A Double (drip-proof plate included)
- power supply: AC100V 50/60 Hz
- power cord: 2.5 m grounding type 2P plug
- Vent: Φ 97 mm
- Exhaust Fan: Metal Fan EC 100 S Single Phase 100 V 0.4 kW
- Exhaust fan operation volume: approx. 80 dB
- Scrubber: Activated carbon filter x 16 pieces (Activated charcoal Weight: about 12.8 kg) ***d
- *Dep***ing on the distance of the exhaust duct and the number of turns, the fan ability may be insufficient.
