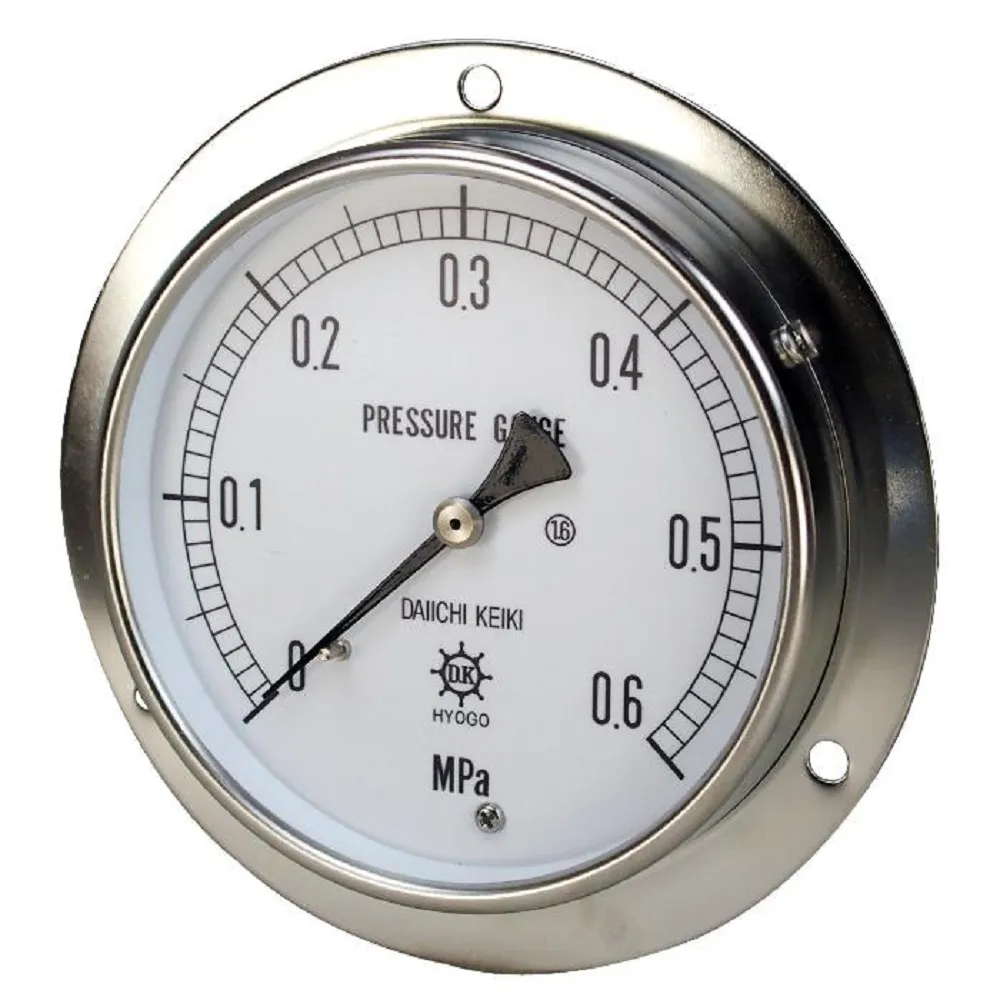

68-0841-46 UST All Stainless Steel Pressure Gauge 0.05MPA 75 φR 1/4 UST-DUR14-75X0.05MPA
Product Description
Product Model: 68-0841-46Product Brand: Daiichi Keiki M […]
Contact Us
Product Details
Product Model: 68-0841-46
Product Brand: Daiichi Keiki Mfg
Features
- Not only the wetted part (Screw Portion, Bourdon Pipe), but also the case, scale plate, needle, screw, and all other parts (Excluding glass and terashi) are made of stainless steel, giving it excellent corrosion resistance.
- In particular, even in a corrosive atmosphere, not only the case but also the scale plate, needle, etc. can be kept in a clean condition without rusting.
Spec
- Type: Framed/Pressure Introduction Port Back Type
- Wetted Part Material: SUS316
- Case Material: SUS304
- Accuracy: ±1.6% F.S
- Pressure span (MPA): 0.05
- Size (φ): 75
- Connecting Screw: R1/4
- Type: Pressure gauge
