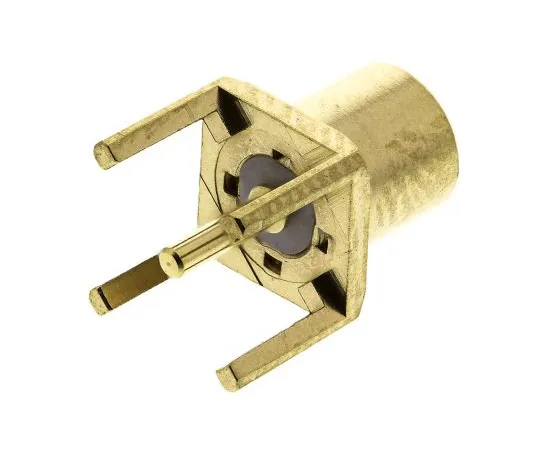

63-4743-44 Radiall Through Hole MCX Connector jack, 50Ω Impedance, Solder Termination, 0 → 6GHz R113426000W
Product Description
Product Model: 63-4743-44Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-4743-44
Product Brand: Radiall
Features
- Radiall 50 Ohm MCX RF Coaxial PCB Mount Jack Receptacle Connector. 50 Ohm MCX RF coaxial PCB mount jack receptacle connectors with snap-on mating and solder legs. These 50 Ohm MCX RF coax PCB mount female receptacle connectors have a thermoplastic dielectric, a gold over nickel plated body and gold plated captive centre contact.
Spec
- Quantity：1piece
- G***er : Female
- Body Orientation : Straight
- Termination Method : Solder
- Mounting Type : Through Hole
- Body Plating : Gold over Nickel
- Impedance : 50Ω
- Minimum Operating Temperature : -55 °C
- Operating Frequency : 0 → 6GHz
- Contact Plating : Gold over Nickel
- Contact Material : Beryllium Copper
- CODE No.:245-5115
