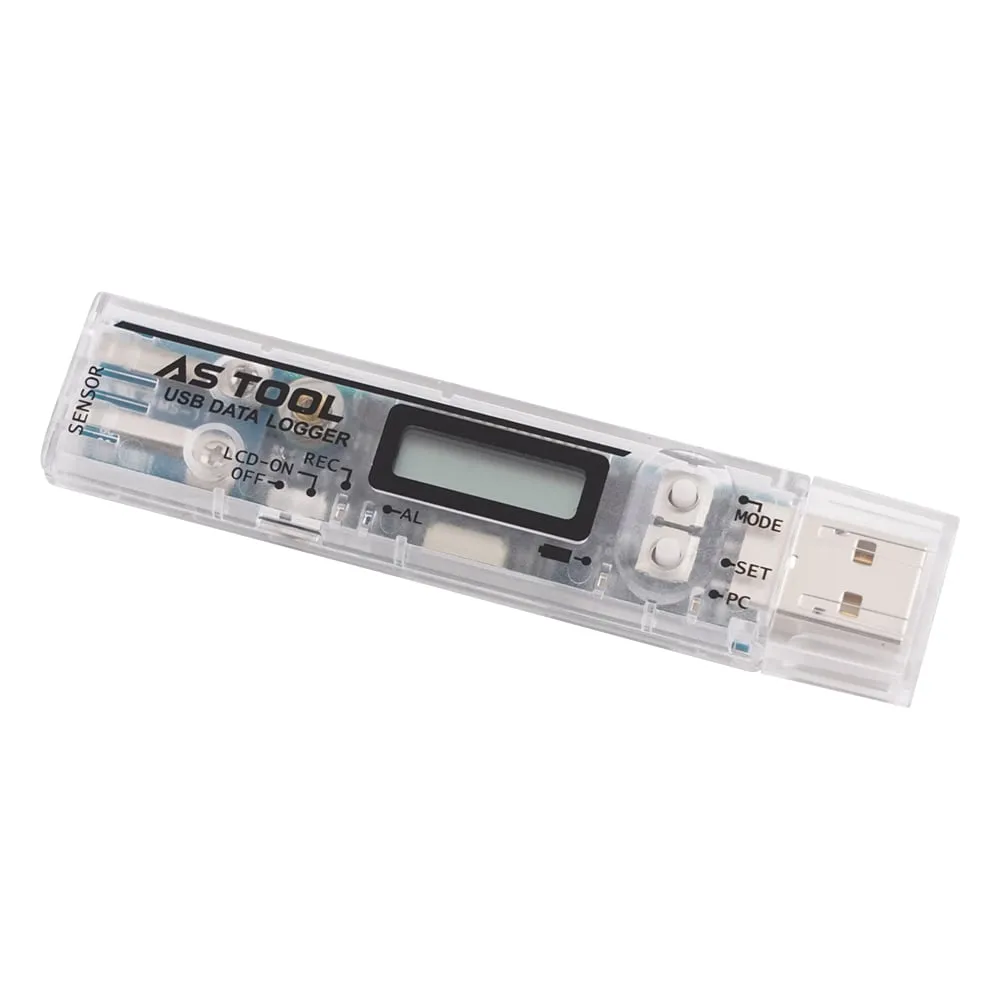

2-7963-03-20 K Thermocouple Data Logger Calibration Certaificate RX-450K
Product Description
Product Model: 2-7963-03-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 2-7963-03-20
Product Brand: AS ONE Corporation
Features
- A connector type thermocouple (sold separately) can be inserted to record 15000 data points.
- Imported data is saved in CSV format, so it can be easily graphed with commercially available spreadsheet software.
- When connected to a PC, power is supplied from USB and data is imported directly to the PC.
Spec
- Measuring range: - 200 ~ 999.9 degrees C
- Temperature sensor: K-type thermocouple (optional: Omega mini plug SMP-K-M type)
- Accuracy of measurement (25 degrees C): +/- 0.8 degrees C (not including error of thermocouple)
- Maximum recording capacity: 15000 points
- Measuring intervals: 5 to 59 seconds, 1 to 240 minutes
- Battery: CR 1220 button battery (included for testing)
- Battery life: Approximately 1 year (measured hourly)
- Size: 95.0 x 21.0 x 10.4 mm
- Weight: approximately 21 g (excluding batteries and thermocouples)
- Operating System: Windows ® Vista/7/8/8.1/10 (32/64 bit)
- < a href="https://axel.as-1.co.jp/images/pdf/pb/2-7963/rx-controller_v1.20.zip" rel="noopener nofollow" target="_blank" > Download the dedicated application (v 1.20) here < /a >
- Operating System: Windows ® 7/8/8.1/10 (32/64 bit)
- The calibration points are the minimum temperature and the maximum temperature of 2 points. *Calibration only without sensor.
- *If you would like to calibrate the unit and sensor together, please contact us separately.
