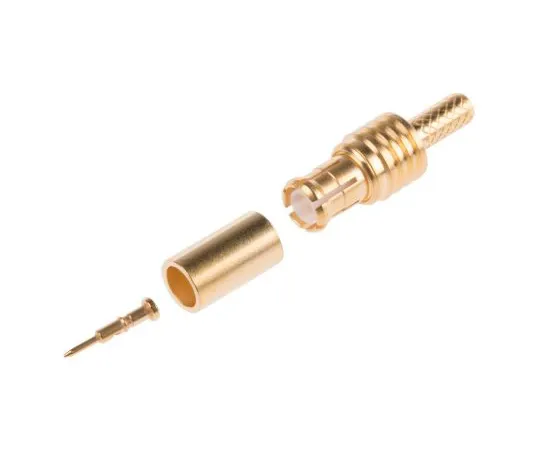

63-4743-39 Radiall Cable Mount MCX Connector Plug, 50Ω Impedance, Crimp Termination, 0 → 6GHz, RG174, RG188, RG316 cable R113082000W
Product Description
Product Model: 63-4743-39Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-4743-39
Product Brand: Radiall
Features
- Tooling not supplied by Radiall. Radiall 50 Ohm MCX RF Coaxial Crimp Plug Connectors. 50 Ohm MCX RF coaxial crimp plug connectors with snap-on mating and a crimp termination. These 50 Ohm MCX straight RF coax crimp cable plugs have a thermoplastic dielectric, a gold over nickel plated body (apart from stock number < 257-8397') 257-8397/ which is nickel plated), gold plated centre contact and are for *** with a variety of RF coaxial cable types including RG174, RG188, RG316, RG178 and RG196
Spec
- Quantity：1piece
- G***er : Male
- Body Orientation : Straight
- Termination Method : Crimp
- Mounting Type : Cable Mount
- Body Plating : Gold over Nickel
- Cable Type : RG174, RG188, RG316
- Impedance : 50Ω
- Minimum Operating Temperature : -55 °C
- Maximum Operating Temperature : +155 °C
- Contact Plating : Gold over Nickel
- Contact Material : Brass
- CODE No.:245-5036
