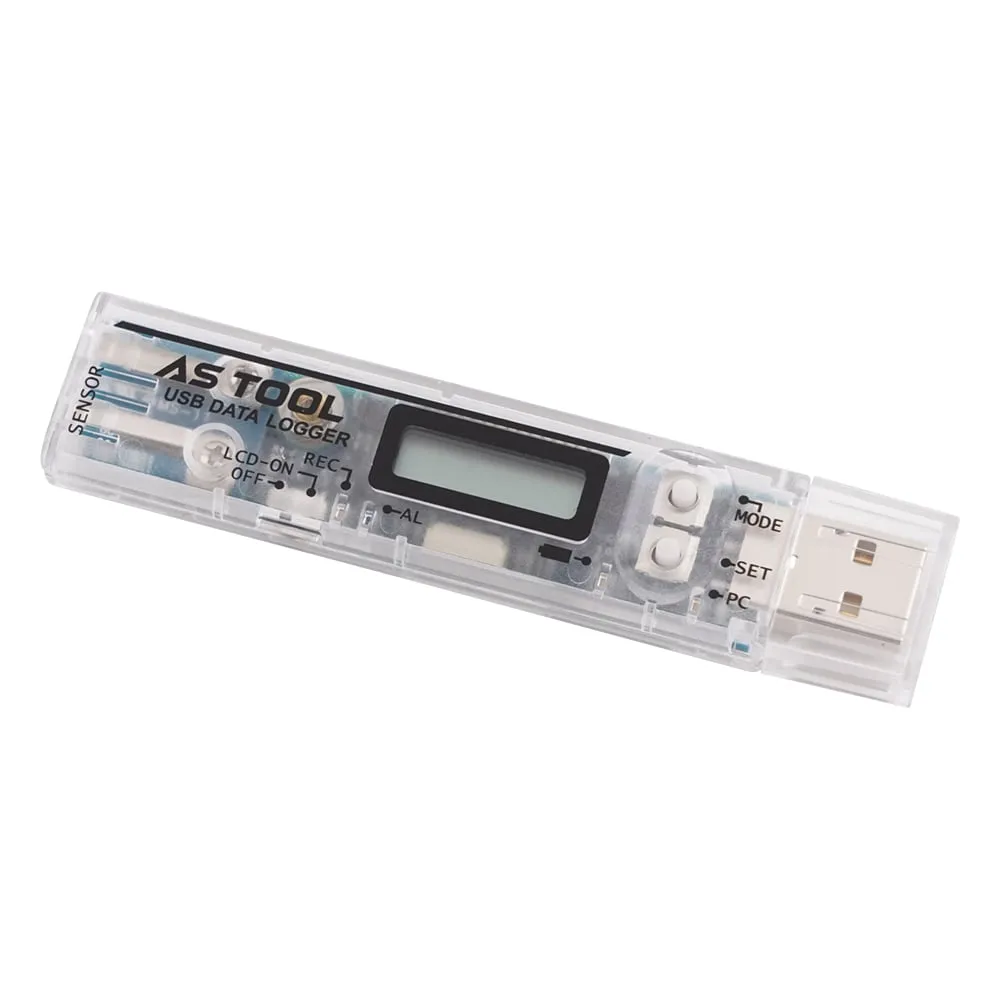

2-7963-03 K Thermocouple Data Logger RX-450K
Product Description
Product Model: 2-7963-03Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-7963-03
Product Brand: AS ONE Corporation
Features
- A connector type thermocouple (sold separately) can be inserted to record 15000 data points.
- Captured data is saved in CSV format, making it easy to graph with commercially available spreadsheet software.
- When connecting to a computer, power is supplied from the USB cable, and data is loaded directly into the computer.
Spec
- Model number: RX-450K
- Measurement range: -200 - 999.9℃
- Resolution: 0.2℃
- Temperature sensor: K type thermocouple (optional: Omega mini plug SMP-K-M type)
- Measurement accuracy (25℃): ±0.8℃ (not including thermocouple error)
- Resolution: 0.2℃
- Maximum recording capacity: 15000 points
- Measurement interval: 5 - 59 seconds, 1 - 240 minutes
- Battery: CR1220 button cell (included for test)
- Battery life: Approximately 1 year (when measuring every 1 hour)
- Size: 95.0 x 21.0 x 10.4mm
- Weight: Approximately 21g (excluding cell and thermocouple)
- Supported OS: Windows(R) 2000 (SP4 only)/XP (SP2 or later)/VistaTM (32 bit only)/7 (32 bit only)
- *Control software (Japanese) can be downloaded from the website without pay. URL http: //www.omc-ltd.co.jp/download/asone/dl_top.html
- RoHS3 (EU)2015/863 Certificates can be issued
