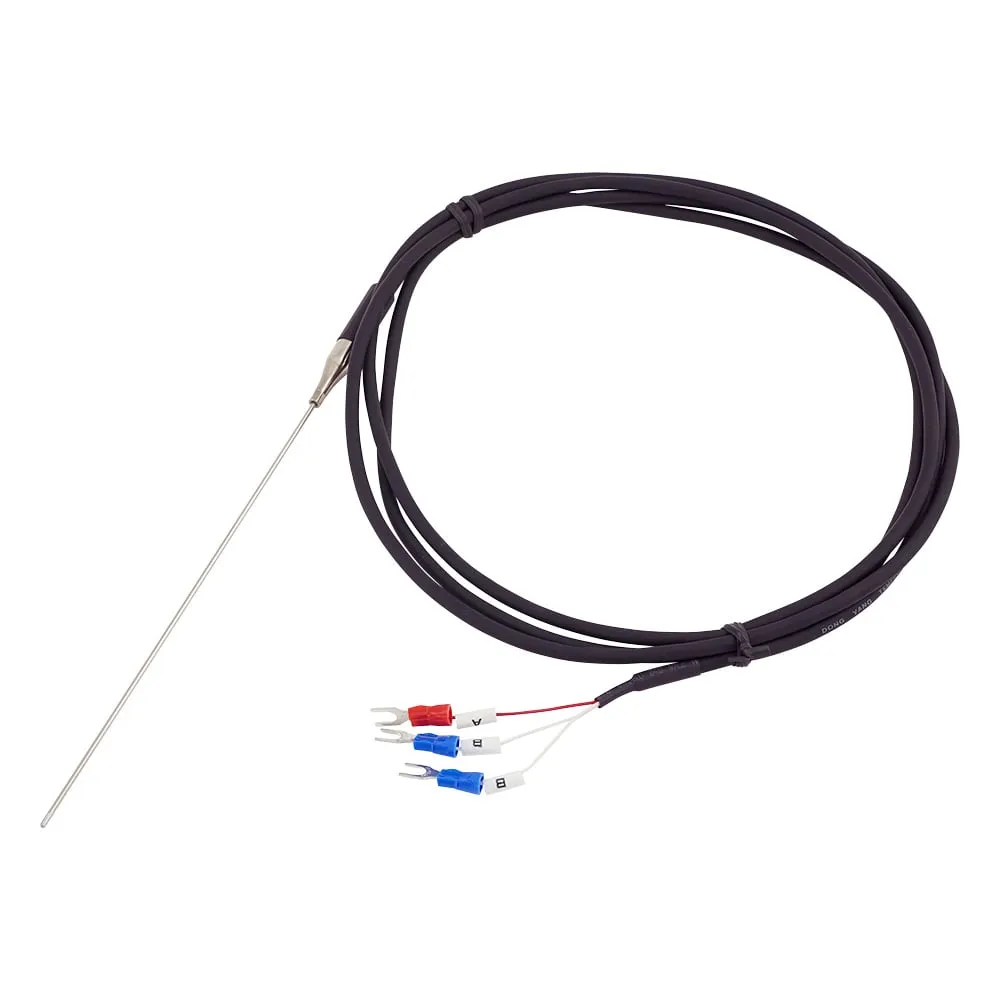

2-7958-01-56 Temperature measuring resistor (sheath type) Class B 3-wire Type with English Calibration Certificate TPT-16150H
Product Description
Product Model: 2-7958-01-56Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 2-7958-01-56
Product Brand: AS ONE Corporation
Spec
- Element: Platinum Temperature Resistor (Pt 100) Class B 3-wire type
- Temperature range: 0 ~ 350 degrees C
- Size of sheath: phi 1.6 x 150 mm
- Lead wire covering material: Vinyl shield (VLS)
- Lead wire length: 2 m
- Heat-resistant temperature: sleeve/80 C, lead/90 C
- Lead wire terminal: M4Y terminal
- Material: Sheath/Stainless (SUS 316), Sleeve/Stainless (SUS 304)
- sheath type
