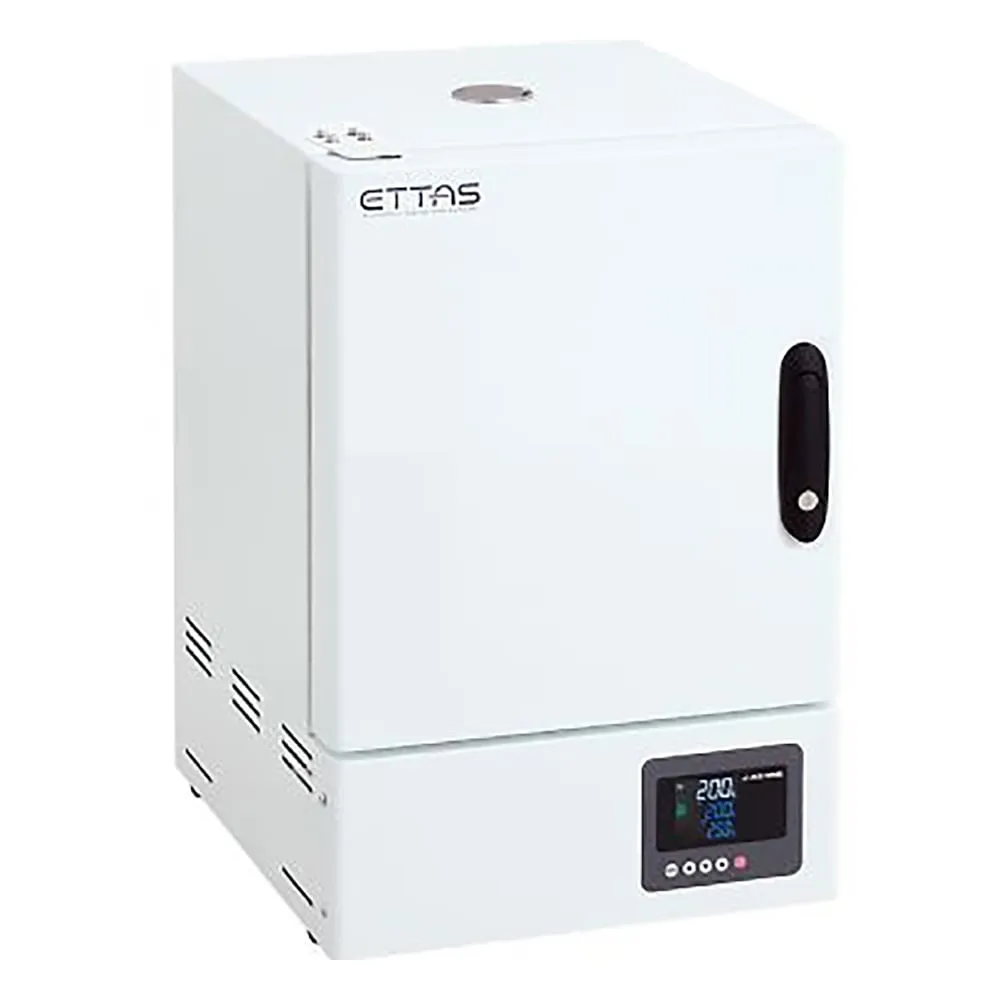

1-2125-21 Constant-Temperature Drying Oven (Timer Type, Forced Convection System) Without Window (Left Pivot Door) OF-300V
Product Description
Product Model: 1-2125-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-2125-21
Product Brand: AS ONE Corporation
Features
- Forced Convection
- Selectable 3 Sizes
- Basic Model Changed
- Digital Safety Equipment Standard
- Brilliant Large LCD Screen
- Uses a highly visible color LCD display for improved operability.
- In addition to the PV/SV two-stage display that makes it easy to check the measured values and the set values, the over-temperature rise prevention set temperature display is adopted.
- Four timer functions (ON/OFF/ON/OFF/SV start) are provided as standard equipment, and you can select from four types according to the quantity and size of the sample.
- The temperature control ***s PID control, which enables stable temperature control with high accuracy.
Spec
- Inner dimensions (mm): 300 x 327 x 300
- Door: Left
- Temperature control range: R.T. + 20 to 270 °C
- Maximum temperature arrival time: about 20 minutes
- Temperature distribution (JTM K05): ±3 °C (at 270 °C)
- Temperature fluctuation (JIS): ±1 °C (at 270 °C)
- Temperature gradient (JIS): 10 °C (at 270 °C)
- Temperature control method: PID control, SSR output
- Additional function: Timer specification → ON timer, OFF timer, SV start, ON/OFF timer
- Safety device: Digital setting type overrise prevention function, overcurrent breaker burnout mechanism (Heater OFF when sensor is disconnected)
- Heater capacity: 1100W
- Temperature sensor: K class thermocouple x 2 pieces (1 piece for temperature control and overheating prevention)
- Tana pitch number of step mm: 35 pitch 6 stages
- Exterior/Interior: Steel powder coating/Stainelss steel SUS304 (Partly applied stainless steel SUS443J1)
- Air outlet: φ32mm x 1 piece
- Outer dimensions: 400 x 447 x 610mm
- Inner capacity: about 25L
- Weight: about 25kg
- Power supply: AC100V 50/60Hz Cord length : 2.4 m (3P plug)
- rated current: 11.5 A
- shelf board, load tolerance: 15kg
- Accessories: shelf board x 2 pieces/shelf board rail x 2 sets
- RoHS3 (EU)2015/863 Certificates can be issued
