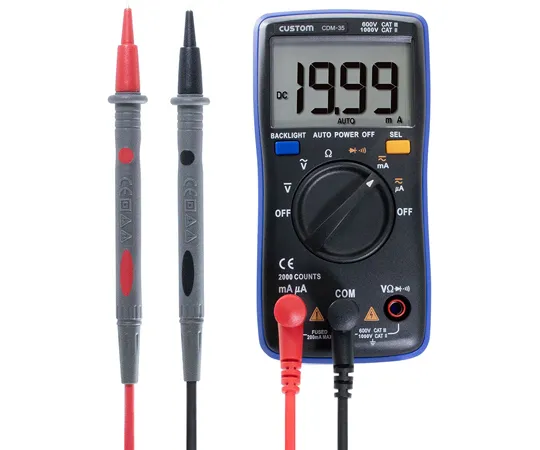

67-8090-80 Digital multimeter CDM-35
Product Description
Product Model: 67-8090-80Product Brand: CUSTOM corporat […]
Contact Us
Product Details
Product Model: 67-8090-80
Product Brand: CUSTOM corporation
Features
- Handy size that can be put in the pocket of work clothes. Basic model with basic functions for easy ***
- Equipped with a backlight function that allows measurement results to be checked even in the dark.
- Compatible with overvoltage category CATIII 600 V. Can measure the primary electrical path from the distribution board to the equipment and outlet
Spec
- Measurement Functions: Voltage (DC/AC), Current (DC/AC), Resistance, Conductivity Check, Diode Check
- measurement range
- DC voltage: 0~1000 V
- AC Voltage: 0~750 V
- DC Current/AC Current: 0~200 mA
- Resistance: 0~20 megohms
- Detection method: Average value method
- Range: Auto
- Dimensions: Approx. W65 x H130 x D32mm
- Weight: about 130 g (including battery)
- Test Lead Length: Approx. 75 cm
- Power supply: 2 AAA batteries
- Compliant with IEC61010-1 CAT II 1000 V, CAT III 600 V
