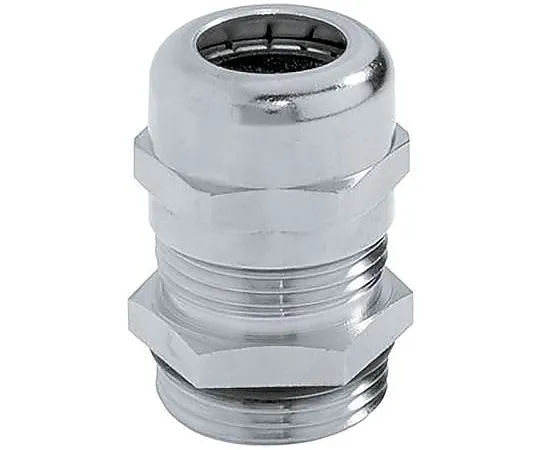

63-4742-89 Lapp Skintop PG13.5 Cable Gland With Locknut, Nickel Plated Brass, IP68 52003520+52015800
Product Description
Product Model: 63-4742-89Product Brand: Lapp Features L […]
Contact Us
Product Details
Product Model: 63-4742-89
Product Brand: Lapp
Features
- Lock nut. Lapp IP68 PG Round Top Cable Gland. From Lapp, this Skintop gland has a durable nickel-plated brass construction, and offers excellent protection and maximum reliability in cable management. With a simple screw-on action the gland is easy to fit, which can reduce assembly time, and has a variable clamping range. It also provides an optimum of strain relief, protecting cables from damage by wear and tear. This Skintop cable gland is incredibly resilient, offering not only great mechanical protection, but also resistance to temperature and corrosion. As such, the gland can be ***d in demanding environments, and presents a low maintenance solution for cable connection. Features and Benefits IP68, 10 Bar Optimum Strain Relief Robust Construction Chemical Resistance Temperature Resistance Corrosion Resistance Applications The Skintop cable gland is designed to be ***d in panels, junction boxes and machinery housing where mechanical and chemical stability are vital. Chemical Industry Measurement and Control Machine and Equipment Manufacturing Plant Engineering Environment The cable gland is sealed to IP68, which means it has excellent protection against particle ingress, and is water proof even when immersed. This means the glans is suitable for *** in harsh environments, and even some open air applications.
Spec
- Quantity:1bag(5pieces)
- Thread Size : PG13.5
- Material : Nickel Plated Brass
- Maximum Cable Diameter : 9mm
- Minimum Cable Diameter : 4mm
- Colour : Metallic
- IP Rating : IP68
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +80°C
- Locknut Included : Yes
- CODE No.:243-8889
