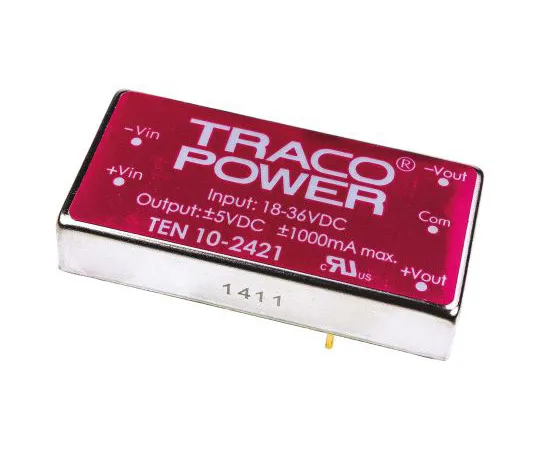

63-4742-68 TRACOPOWER TEN 10 10W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out ±5V dc TEN 10-2421
Product Description
Product Model: 63-4742-68Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-4742-68
Product Brand: TRACOPOWER
Features
- UL 60950-1, IEC / EN 60950-1. UL/cUL. 3. Traco 10W Regulated Isolated DC-DC Converter - TEN10 Series. 10W single/dual output regulated isolated high performance DC-DC converters with a compact low profile package. These DC-DC converters have a high efficiency enabling an operating temperature range of -40°C to +85°C and a built-in EMI filter to EN 5022 class A without external components. Typical applications for these DC-DC converters include battery operated equipment, instrumentation, distributed power architectures in communication and industrial electronics. Products not recomm***ed for new designs please refer to the alternative at the bottom of the page Wide 2:1 input range 1.5kVdc input/output isolation, case 1kVdc Input filter to EN55022 Class A and FCC Level A without external components Regulated outputs Continuous short circuit protection Shielded metal case with insulated base-plate SMD technology with ceramic chip capacitors
Spec
- Quantity:1piece
- Output Voltage : ±5V dc
- Input Voltage Range : 18 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1500V dc
- Power Rating : 10W
- Output Current : ±1A
- Mounting Type : Through Hole
- Number of Outputs : 2
- Efficiency : 80%
- Package : 2 x 1 in
- Load Regulation : ±3%
- Maximum Temperature : +85°C
- Length : 50.8mm
- CODE No.:242-2531
