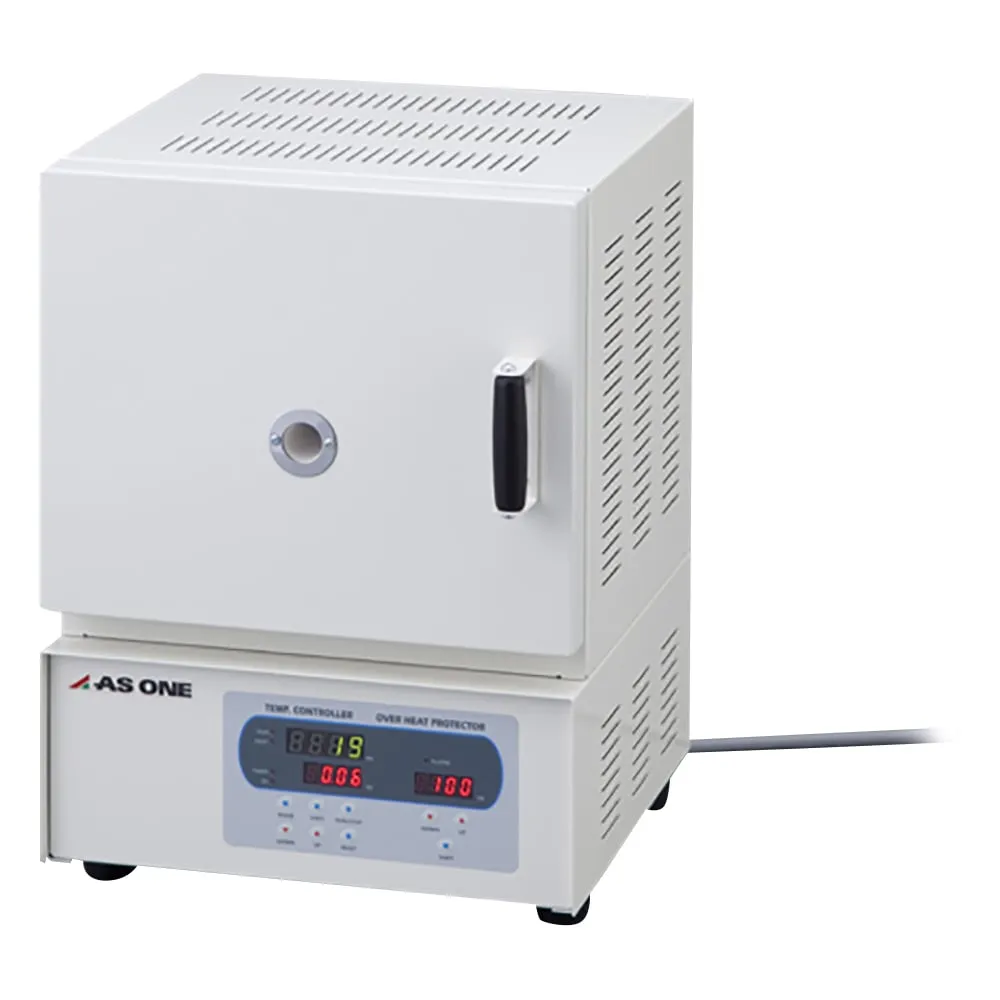

1-1646-01 Program Electric Furnace 120 x 175 x 100 SMF-1
Product Description
Product Model: 1-1646-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-1646-01
Product Brand: AS ONE Corporation
Features
- With a maximum temperature of 1000°C and a high temperature rise speed, it can be widely ***d for material testing and heat treatment.
- Up to 8 patterns of 16 step programs can be set, and the temperature rise rate can also be set.
- In addition to the automatic over-rise prevention function linked to the set temperature, it comes with a completely indep***ent over-rise prevention function that allows you to set any temperature.
Spec
- Model number: SMF-1
- External dimensions: 270 x 275 x 375mm
- Inner dimension (mm): 120 x 155 x 100 *Including sensor protrusions
- Temperature settings range: 100 - 1000℃ (regular ***: 900℃)
- PID control
- Sensor: K thermocouple x 2
- Program function: 16 steps, 8 patterns
- Timer function: Auto-start, auto-stop, SV start, ON/OFF timer
- Settings units: Temperature/1℃, Time/1 minute
- Time-of-arrival of highest temperature: Approximately 45 minutes
- Exterior: Steel coating
- Interior: Ceramic fiber
- Heater (4 side heater up and down, left and right): 900W
- Safety device: Indep***ent excessive rise prevention function, overcurrent breaker, burnout mechanism (heater is OFF when sensor is disconnected)
- Power supply: 100VAC 50/60Hz
- Power cord length: 2m (3P plug)
- Weight: Approx 10kg
- RoHS3 (EU)2015/863 Certificates can be issued
