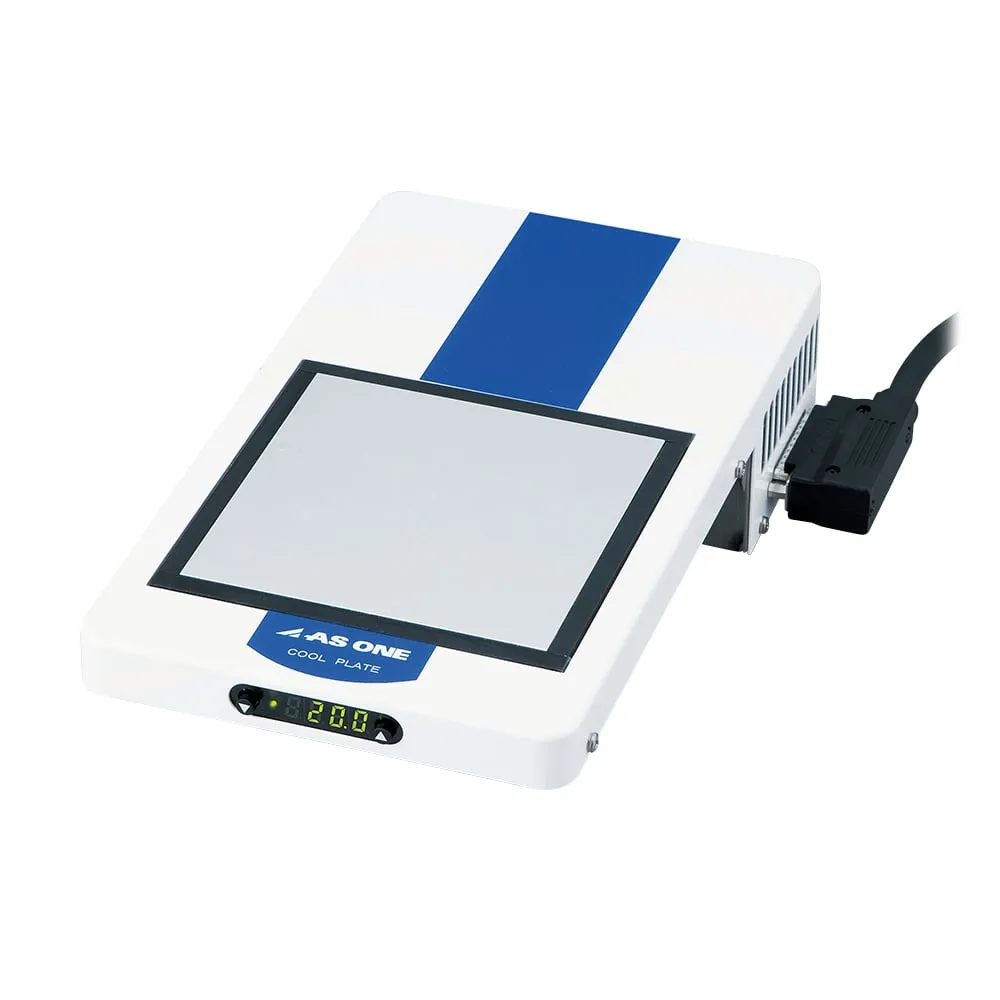

1-1614-01 Cool Plate SCP-85
Product Description
Product Model: 1-1614-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-1614-01
Product Brand: AS ONE Corporation
Features
- It has a thin design and can be ***d for simple cooling and heating of samples.
- High precision temperature control is possible with Peltier module.
- Can be combined with your own stirrer for cooling and heating stirring.
Spec
- Model number: SCP-85
- Temperature settings range: 5 - 105℃
- Type: Plate mold
- Temperature control accuracy: +/- 0.2℃
- Plate material: Aluminum
- Cold part: Peltier module
- Temperature control system: Digital PID control
- Size for the stirrer mounting section: 126 x 167 x 20mm
- Allowable beaker capacity: 300mL
- Power supply: 100VAC 50/60Hz 1A
- Power cord length: 1.5m (3P plug)
- Weight: Approx 1.0kg
- Size: 126 x 243 x 64mm
- Plate size: 85 x 85mm
- For both cooling and heating
- Please *** a stirrer to combine with no projections on the back and its height must be 60mm or more.
