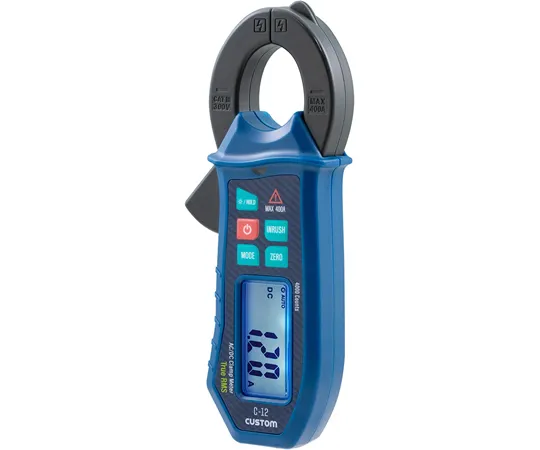

67-8090-79 AC/DC Clamp Meter C-12
Product Description
Product Model: 67-8090-79Product Brand: CUSTOM corporat […]
Contact Us
Product Details
Product Model: 67-8090-79
Product Brand: CUSTOM corporation
Features
- Clamp meter capable of measuring AC current and DC current
- Can measure inrush current. Large instantaneous currents such as surge current can be measured.
- Non-contact electroscopic function (NCV). Indicate AC hot wire with LED lamp
- With Data Hold Function
- With an Auto Power Off Function to Prevent Battery Consumption
- Equipped with LCD screen backlight that allows you to check measured values even in the dark
Spec
- measurement range
- AC current: 0.20~40.00 A/40.0~400.0 A
- DC Current: 0.20~40.00 A/40.0~400.0 A
- Electroscopic (NCV): 90~600 VAC
- detection method: true rms method (true RMS)
- Range: Auto
- Maximum measurement conductor diameter: Φ24 mm
- Dimensions: Approx. W60 x H152 x D28mm
- Weight: about 140 g (including battery)
- Power supply: 2 AAA batteries
- Compliant with IEC-61010 01 CAT. II 600 V/CAT. III 300 V
