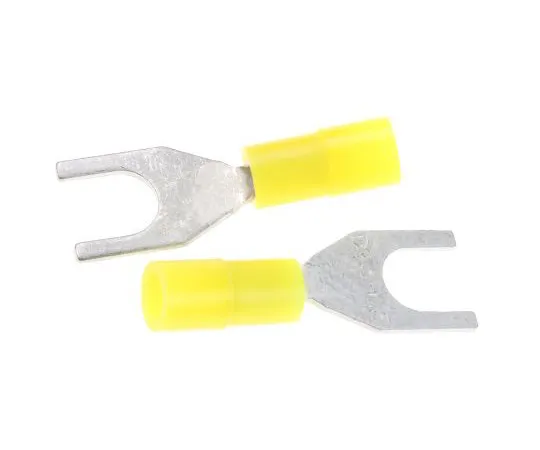

63-4742-03 RS PRO Insulated Crimp Spade Connector, 0.2mm² to 0.5mm², 26AWG to 22AWG, M3.5 Stud Size Nylon, Yellow 239-4183
Product Description
Product Model: 63-4742-03Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4742-03
Product Brand: RS PRO
Features
- RS Pro Insulated Spade Connectors. RS Pro range of insulated crimp spade terminals made from copper with a tin plating. These spade connectors have vinyl or nylon insulation with a flared design for easy wire insertion. The insulation of these crimp spade terminals is colour coded to correspond with the wire size they are ***d with. All models are highly reliable and excellent quality. Features ; Benefits. Various metric sizes available. Available in Red, Yellow and Blue. Each colour corresponds to different wire sizes
Spec
- Quantity：1bag(100pieces)
- Insulation : Insulated
- Width : 6mm
- Minimum Wire Size mm² : 0.2mm²
- Maximum Wire Size mm² : 0.5mm²
- Minimum Wire Size AWG : 26AWG
- Maximum Wire Size AWG : 22AWG
- Stud Size : M3.5
- Colour : Yellow
- Contact Plating : Tin
- Contact Material : Copper
- Thickness : 0.5mm
- CODE No.:239-4183
