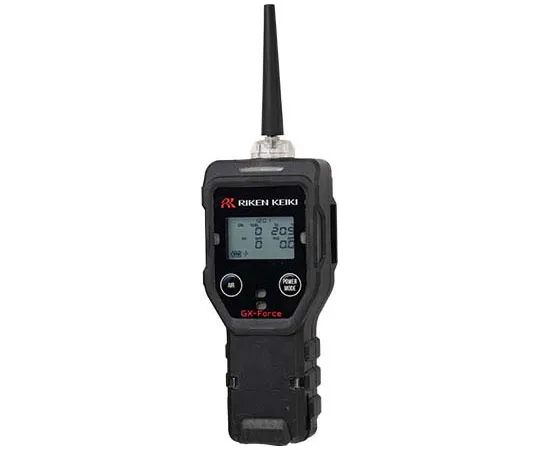

67-8025-20 Portable Multi-Gas Detector Type A Isobutane Specification (Flammable, Oxygen, Carbon Monoxide, Hydrogen Sulfide) (with Traceability Certificate) GX-ForceTYPEAHC
Product Description
Product Model: 67-8025-20Product Brand: RIKEN KEIKI Co. […]
Contact Us
Product Details
Product Model: 67-8025-20
Product Brand: RIKEN KEIKI Co., Ltd.
Features
- Lightweight Design (Approx. 280 g)
- Easy-to-grip grip grip design
- Sensor 3 years warranty (* Manufacturer inspection is required at least once a year)
- Continuous *** time greatly increased (approx. 30 hours)
- Sturdy design (3m drop durability test cleared)
- Dustproof waterproof structure
- Suitable for low and high temperature environments
- Equipped with LED light
- Combustible Gas with Rereading Function (27 Types)
- Can be ***d as a preliminary measurement during and before work in oxygen shortage danger areas (manholes, underground pits, tanks, etc.).
- It is recomm***ed to *** optional products according to the purpose of measurement (8 m sampling tube with float, 2-stage gas collection rod, etc.).
- This product comes with a traceability certificate. Breakdown of attached documents: gas inspection report (acceptance certificate issued by gas manufacturer), traceability system (traceability system diagram for gas production), traceability chart (traceability system diagram for equipment and measuring instruments)
Spec
- Target gas: Combustible gas (isobutane), oxygen, carbon monoxide, hydrogen sulfide
- Display Range: Combustible Gas/0 ~ 100%LEL, Oxygen/0.0 ~ 40.0%, Carbon Monoxide/0-2000ppm, Hydrogen Sulfide/0.0-200.0ppm
- alarm set value
- Flammable gas: 1st 10%LEL, 2nd 50%LEL, 3rd 50%LEL
- Oxygen: L 19.5%, LL 18.0%, H 25.0%
- Carbon monoxide: 1st 25ppm, 2nd 50ppm, 3rd 50ppm
- Hydrogen sulfide: 1st 1.0ppm, 2nd 10.0ppm, 3rd 10ppm, 0ppm
- Sampling method: suction type
- Suction flow rate: 0.35 L/min or more
- Display: LCD Digital (7 segments +14 segments + icon)
- Indicators: Clock display, battery level display, operation status display, pump operation status display
- Sound pressure (dB): Approx. 90 (30 cm average)
- Gas alarm operation: lamp flashing, buzzer interlocking modulation sounding, gas concentration indication flashing, vibration
- Gas alarm reset operation: self-holding
- Failure alarm and self-diagnosis: System error, clock error, sensor error, battery voltage drop, improper adjustment, pump error, flow rate drop error
- Failure alarm operation: lamp blinks, buzzer is intermittent, contents display
- Failure alarm return operation: Self-holding
- Communication Specifications (for Data Logger): USB2.0 (Connector: Type-C)
- Power: Lithium-ion battery
- Continuous Use: Approximately 30 hours (After full charge, at 25°C, no alarm, no lighting)
- Operating temperature range (°C): −40 to +60 (no sudden change)
- Operating humidity range (%RH): 0-95 (no condensation)
- Explosion-Proof Structure: Intrinsically Safe Explosion-Proof Structure and Pressure-Proof Explosion-Proof Structure (Ex da ia IIC T4 Ga)
- Various certifications: JIS T8201/JIS T8205/JIS T8206
- Protection Grade: IP67 Equivalent
- External Dimensions (mm): Approx. 64 (W) x 173 (H) x 47 (D) (Excluding Protrusions)
- Mass (g): about 280
