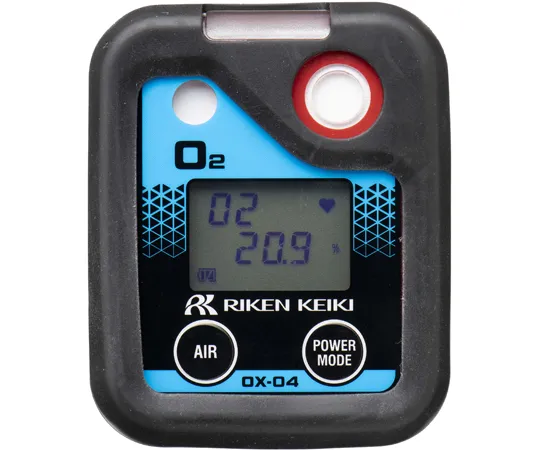

67-8024-98 Personal Oximeter Dry Battery Specification (with Traceability Certificate) OX-04
Product Description
Product Model: 67-8024-98Product Brand: RIKEN KEIKI Co. […]
Contact Us
Product Details
Product Model: 67-8024-98
Product Brand: RIKEN KEIKI Co., Ltd.
Features
- Personal Type (Small)
- For Single Component Gas Detection
- Sensor warranty 3 years (* Required is the manufacturer's inspection more than once a year.)
- Supports a wide temperature range (according to sensor specifications)
- Sturdy design (7m drop durability test cleared)
- Dustproof waterproof structure
- Intrinsically safe explosion-proof structure
- This product comes with a traceability certificate. Breakdown of attached documents: gas inspection report (acceptance certificate issued by gas manufacturer), traceability system (traceability system diagram for gas production), traceability chart (traceability system diagram for equipment and measuring instruments)
- This product comes with a traceability certificate. Breakdown of attached documents: gas inspection report (acceptance certificate issued by gas manufacturer), traceability system (traceability system diagram for gas production), traceability chart (traceability system diagram for equipment and measuring instruments)
Spec
- Target gas: Oxygen
- Has the same performance as JIS T 8201:2010 compliant products. (Self-conformance declaration based on JIS Q 1000 is not made.)
- Detection principle: Constant potential electrolytic type
- Sampling type: diffusion type
- Display range (%): 0.0-40.0
- Resolution (%): 0.1
- Alarm setting (vol%): L18.0/LL18.0/H25.0
- Operating temperature range (°C): -40 to +60 (No sudden change)
- Operating humidity range (%RH): 0~95 (no condensation)
- Continuous Use: Approx. 3000 hours
- Gas alarm: three-stage alarm, over alarm
- Failure alarm: Sensor connection/disconnection, battery voltage drop, calibration error, clock error, system error
- Alarm reset operation: self-holding
- Alarm operation: lamp blinks, buzzer sounds intermittently, gas concentration value blinks, vibration
- Buzzer volume (dB): 80dB or more (30 cm)
- Power supply: 2 AAA alkaline batteries
- Explosion-Proof Structure: Intrinsically Safe Explosion-Proof Structure ([Battery Type] ExiaIICT4Ga/[Rechargeable Battery Type] ExiaIICT3Ga)
- Protection rating: equivalent to IP66/67
- External Dimensions (mm): Approx. 54 (W) x 67 (H) x 24 (D)
- Mass (g): about 93
- Functions: Data logger (* Dedicated software "Data Loger Management Program SW-04Series for domestic ***" is sold separately. [Supported OS: Windows7, 8, 10]), vibration, one-touch calibration, peak value display, temperature display
