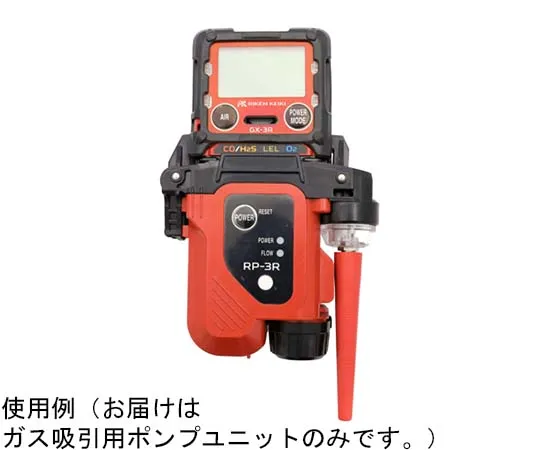

67-8024-54 Gas Suction Pump Unit for GX-3R Series (with Traceability Certificate) RP-3RS
Product Description
Product Model: 67-8024-54Product Brand: RIKEN KEIKI Co. […]
Contact Us
Product Details
Product Model: 67-8024-54
Product Brand: RIKEN KEIKI Co., Ltd.
Features
- External Electric Pump Unit for GX-3R Series
- Can support suction sampling by docking with the GX-3R
- Detachable by the detachable lever of the tester
- Pump suction flow rate switchable
- Others: By docking 3 points, the floating gas sampler 8 m and the GX-3R body, oxygen deficiency in manholes and underground pits can be confirmed (the GX-3R body and the floating gas sampler 8 m are sold separately).
- This product comes with a traceability certificate. Breakdown of attached documents: gas inspection report (acceptance certificate issued by gas manufacturer), traceability system (traceability system diagram for gas production), traceability chart (traceability system diagram for equipment and measuring instruments)
Spec
- Suction Flow Rate (mL/min): High Mode/Approx. 500, Low Mode/Approx. 350
- Alarm display: Flow low alarm/FLOW lamp blinks fast (yellow), Battery voltage low alarm/POWER lamp blinks (green)
- Power supply: AA-size alkaline dry battery/1 piece (* Explosion-proof structure electric machine equipment type test specification: Toshiba LR6)
- Continuous operation time: High mode/approx. 10 hours, Low mode/approx. 16 hours (No alarm at 25°C, with new dry batteries)
- Operating temperature range (°C): -20 to +50 (without sudden change)
- Operating humidity range (%RH): 95 or less (no condensation)
- External Dimensions (Body Only) (mm): Approx. 93 (W) x 95 (H) x 29 (D)
- Mass (g): about 130
- Explosion-Proof: Intrinsically Safe Explosion-Proof Structure (Ex ia IIC T4 Ga (-20~+50°C Toshiba LR6))
- Standard Accessory: AA alkaline dry cell battery/1 piece (Toshiba), tapered nozzle
