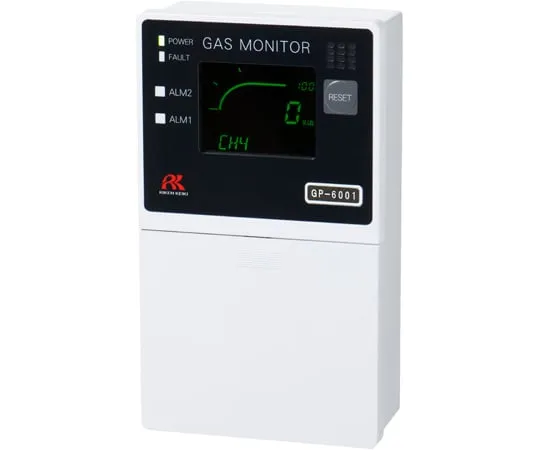

67-7319-74 Stationary Type Hydrogen Gas Alarm (Wall Mounted type) GP-6001GD-A80
Product Description
Product Model: 67-7319-74Product Brand: RIKEN KEIKI Co. […]
Contact Us
Product Details
Product Model: 67-7319-74
Product Brand: RIKEN KEIKI Co., Ltd.
Features
- It can be ***d for explosion prevention control and constant monitoring of hydrogen gas in research and laboratory.
- Hydrogen gas concentration is displayed by two methods, bar meter and digital.
- The name of the hydrogen gas changes to three colors to indicate the detection status, so that the detection status can be visually confirmed from a distance (three colors: normal: green, 1st alarm: orange, 2nd alarm: red).
- The indication alarm unit (model: GP-6001) adopts an indep***ent unit for easy installation.
- The two-stage alarm function enables the gradual management of gas alarms.
- Adoption of maintenance mode function makes it possible to shut off external alarm during maintenance.
- Gas detection part: Compact and lightweight, pressure-resistant explosion-proof structure (explosion-proof, etc., so it can be ***d in hydrogen atmosphere), dustproof and waterproof structure (protection grade: equivalent to IP 67), and can be installed in harsh environments.
Spec
- Detection principle: catalytic combustion type
- Target gas: Hydrogen
- Type of indicating alarm part: GP-6001
- Indication alarm part structure: Wall mounted type
- Explosion-proof Gas Detector: Explosion-proof Pressure
- Type of gas detector: GD-A80
- Display text: H2
- Sensor Type: HW-6211
- Detection range: 0 ~ 100%LEL
- Alarm Setting: 1st Stage: 25%LEL/2nd Stage: 50%LEL
- Number of detection points: 1 point
- Alarm accuracy: within ±25% of the alarm setting value
- Alarm delay time: Within 30 seconds when a gas 1.6 times the alarm setting value is detected.
- Gas alarm type: H-HH alarm
- gas alarm operation
- Self-holding operation (automatic return after reset)
- 1st Stage: ALM1 Lamp Flashing or Lit (Red), Buzzer
- 2nd Stage: ALM2 Lamp Flashing or Lit (Red), Buzzer
- Contact output (1st Stage, 2nd Stage Individual, No Voltage)
- failure alarm operation
- automatic return operation
- FAULT Lamp Flashing (Orange), Contents Display, Buzzer
- Contact output (no voltage)
- Contact Specifications: Non-excitation at Normal Time/a Contact (Open at Normal Time)
- Contact Capacity: 125 VAC/1 A, 30 VDC/1 A for Each Output (In the case of inductive load, install an appropriate spark killer on the load.)
- Input power: AC type (100 VAC, 50/60Hz)
