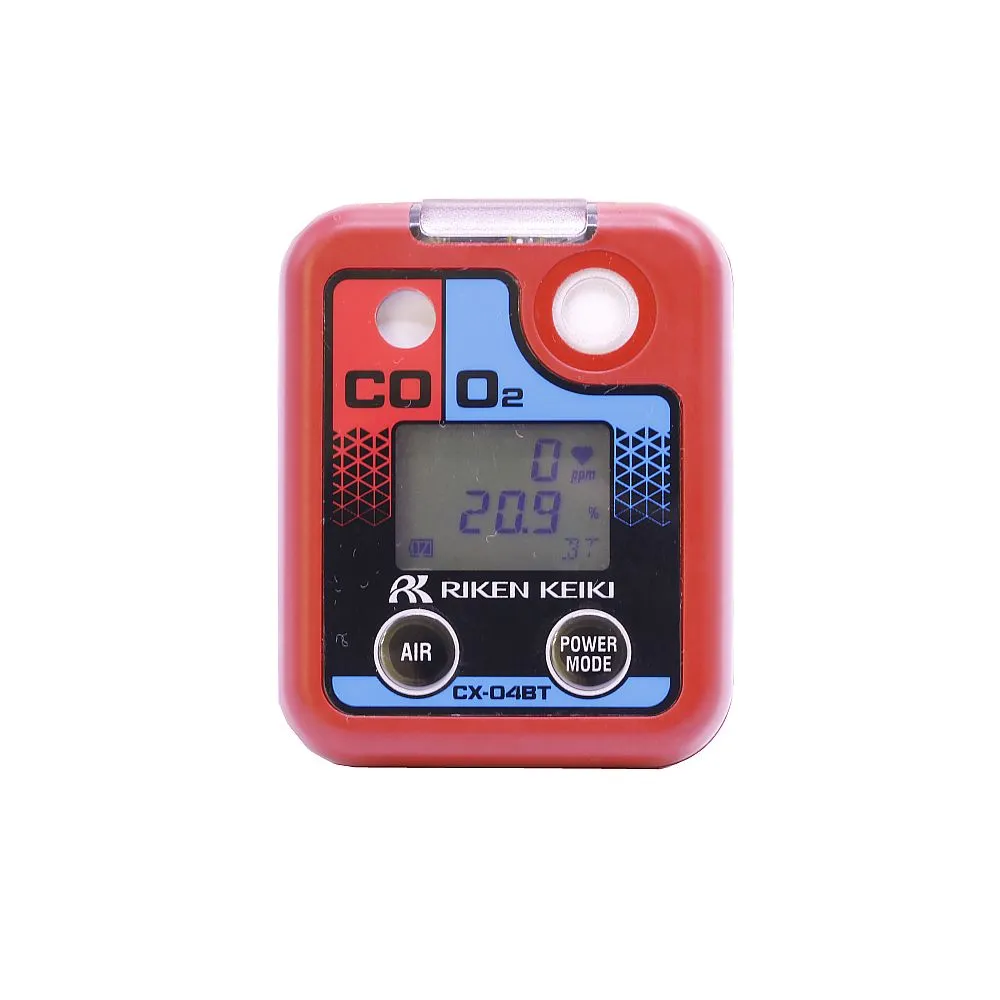

67-6600-51 Personal Oxygen and Carbon Monoxide Meter, battery type, Bluetooth compatible CX-04BT
Product Description
Product Model: 67-6600-51Product Brand: RIKEN KEIKI Co. […]
Contact Us
Product Details
Product Model: 67-6600-51
Product Brand: RIKEN KEIKI Co., Ltd.
Features
- Personal Type (Small)
- Enhancement of functions essential for steelworks and steelworks
- Sensor warranty 3 years (* Required is the manufacturer's inspection more than once a year.)
- Supports a wide temperature range
- Bluetooth communication with smartphones and tablets
- Real-time sharing of emergency alerts with remote locations via RK Link
- Emergency information such as gas alarms can be sent via email from a terminal with a dedicated application installed.
- RK Link: Free download from Google Play/App Store
- Power Supply: Batteries
- Sturdy design (7m drop durability test cleared)
- Dustproof waterproof structure
- intrinsically safe explosion-proof structure
Spec
- Target gas: Carbon monoxide, Oxygen
- Detection principle: Constant potential electrolytic type
- Sampling type: diffusion type
- Display Range: Carbon Monoxide/0-2000ppm, Oxygen/0.0-40.0vol%
- resolution
- Carbon monoxide: 1ppm/0-300ppm, 10ppm/300-2000ppm
- Oxygen: 0.1vol%
- Alarm setting (ppm): 1st 50, 2nd 150, 3rd 150
- Operating temperature range (°C): -40 to +60 (No sudden change)
- Operating humidity range (%RH): 0~95 (no condensation)
- Continuous Use: Approx. 1000 hours
- Gas alarm: 3-stage alarm, STEL alarm, cumulative alarm, over alarm
- Failure alarm: Sensor connection/disconnection, battery voltage drop, calibration error, clock error, system error
- Alarm return operation: Automatic return
- Alarm operation: lamp blinks, buzzer sounds intermittently, gas concentration value blinks, vibration
- Buzzer volume: 80dB or more (30 cm)
- Power supply: AAA alkaline dry cell battery/2 pcs
- Explosion-Proof Structure: Intrinsically Safe Explosion-Proof Structure (Dry Battery Type/Ex ia IIC T4 Ga, Rechargeable Battery Type/Ex ia IIC T3 Ga)
- Protection rating: equivalent to IP66/67
- External Dimensions (mm): Approx. 54 (W) x 67 (H) x 24 (D)
- Mass (g): about 93
- Functions: Data logger (* Dedicated software "Data Loger Management Program SW-04Series for domestic ***" is sold separately. [Supported OS: Windows7, 8, 10]), vibration, one-touch calibration, peak value display, temperature display
- Accessory: Heat resistant case
