67-6309-22 High precision chemical resistant thermometer internal temperature sensor set HRM-120EBSM-22E-015-TC1-ASP
Product Description
Product Model: 67-6309-22Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 67-6309-22
Product Brand: ANRITSU METER CO., LTD.
Features

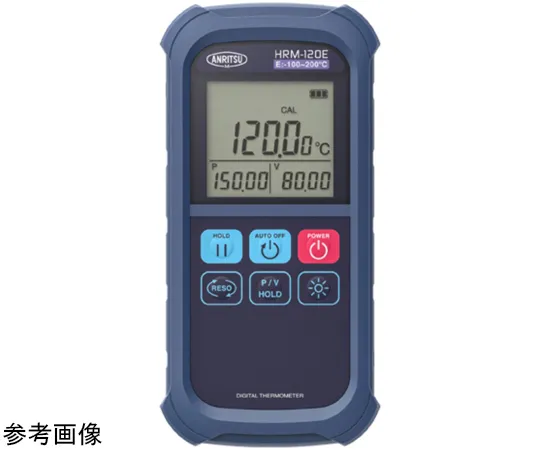

- A set of high-precision handy thermometer HRM-120E and dedicated sensor.
- High Accuracy ±0.3°C Fluororesin Coating Specifications
- [Notes]
- Some of the images are representative.
Spec
- Thermocouple Type: E Type
- Body Waterproof Performance: IPX5 Equivalent
- Input Connector: ASP Connector (Thermocouple Homogeneous Metal)
- Number of input points: 1 point
- Operating Temperature Range (°C)/Sensor Specifications: -100~200
- Overall combined tolerance: ±0.30 deg. C
- Response speed/sensor specification: 20 seconds
- Outer Diameter and External Shape of Protection Tube: φ2.1 mm, Grip Type
- With/without protective tube coating: With coating
- Length of protective tube (mm): 150
- Cord length (m): 1
