67-6309-19 Radiation Thermometer + Contact Thermometer Set Standard 0.1°C Resolution AR-1500A-231K-01-1-TC1-ANP
Product Description
Product Model: 67-6309-19Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 67-6309-19
Product Brand: ANRITSU METER CO., LTD.
Features
- A set of two thermometers and surface temperature sensors that can be ***d in a non-contact type and a contact type.
- Automatic correction of emissivity is possible with contact type temperature sensor.
- [Notes]

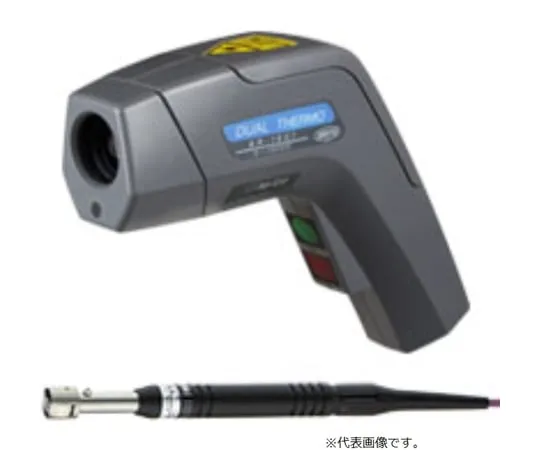

- The product image is a representative image.
Spec
- Thermocouple Type: K Type
- Measuring range (°C)/Radiation thermometer: -50.0~500.0
- Temperature display range (°C): – 50.0~525.0
- Resolution/radiation thermometer: 0.1°C
- Detection Element: Thermopile
- Detection wavelength (μm): 8~14
- Response speed/radiation thermometer: approx. 300 ms
- Aiming: Laser Marker (JIS C 6802 Class 2)
- Operating Temperature Range (°C)/Sensor Specifications: -50~500
- Tolerance/Sensor Specification: ±2.5°C (tolerance at 100°C metal surface)
- Response speed/sensor specification: 1.5 seconds
- Sensor Head Size (mm): φ15
- Guard Material and Contact Plate Coating: Stainless Steel Guard (Standard/Grounding)
- Pipe Shape and Contact Plate Orientation: Straight
- Sensor Pipe Length (mm): 100
- Cord length (m): 1
