67-6308-98 Low Temperature Thermometer Surface Temperature Sensor Set E Type HR-1100EA-211E-00-1-TC1-ASP
Product Description
Product Model: 67-6308-98Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 67-6308-98
Product Brand: ANRITSU METER CO., LTD.
Features

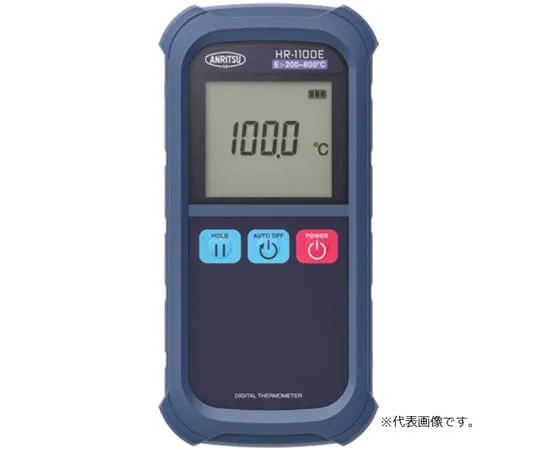

- Handy type temperature measuring instrument HR-1100E and surface temperature sensor set.
- Teflon guard that does not easily damage the object
- [Notes]
- The product image is a representative image.
Spec
- Thermocouple Type: E Type
- Body Waterproof Performance: IPX5 Equivalent
- Input Connector: ASP Connector (Thermocouple Homogeneous Metal)
- Number of input points: 1 point
- Operating Temperature Range (°C)/Sensor Specifications: -50~300
- Tolerance/Sensor Specification: ±2.5°C (-50°C to 300°C)
- Response speed/sensor specification: 1.5 seconds
- Sensor Head Size (mm): φ15
- Coating of Guard Material and Contact Plate: Teflon Guard (for Low Temperature, Grounding)
- Pipe Shape and Contact Plate Orientation: Straight
- Sensor Pipe Length (mm): 30
- Cord length (m): 1
