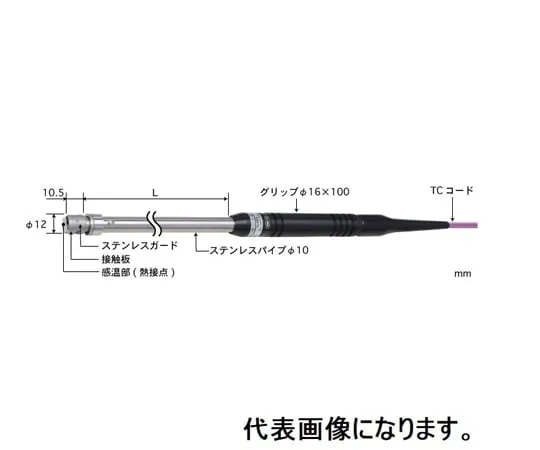

67-6308-74 Temperature Sensor for Static Surfaces Contact Support Type φ12 Stainless Steel Guard (for High Temperatures/Grounding) Straight Type K Pipe L: 30 Standard Plug AX-341K-00-1-TC1-ASP
Product Description
Product Model: 67-6308-74Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 67-6308-74
Product Brand: ANRITSU METER CO., LTD.
Features
- The temperature sensing part of the sensor follows and adheres to the object to be measured by the ±4° contact support function.
- The contact support function maintains close contact between the sensor and the object to be measured against camera shake during measurement by tilting the head in all directions. The correct temperature measurement is backed up to improve production efficiency.
Spec
- Operating temperature range (°C): -50~800
- Head Size (mm): φ12
- Guard Material and Contact Plate Coating: Stainless Steel Guard (for High Temperature, Grounding)
- Pipe Shape and Contact Plate Orientation: Straight
- Type of thermocouple: Type K
- Pipe length (mm): 30
- With/without grip: Yes
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug (Thermocouple Homogeneous Metal)
- Response time: 1.5 seconds
- Durability: 75000 cycles or more
- Head Operating Range: ±4°
- Pipe Material: Stainless Steel (SUS316)
- Grip Material: Polyacetal
