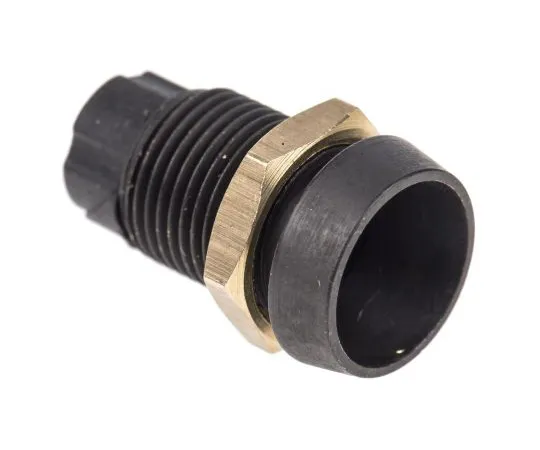

63-4741-14 LED Screw In Panel Mount Indicator Bulb Holder, 5 mm Lamp Size, 8mm Panel Hole Diameter A105000AAD
Product Description
Product Model: 63-4741-14Product Brand: Arcolectric Fea […]
Contact Us
Product Details
Product Model: 63-4741-14
Product Brand: Arcolectric
Features
- Panel Mount LED Lampholders. Panel mounting LED holders for two lead 3mm and 5mm LEDs. These brass LED holders have a chrome, black or white anodised finish. LEDs are held in place by a push-fit nylon base for 3mm types or a screw-in nylon base for 5mm types. The 5mm focussing reflector types have a recessed parabolic shroud which foc***s the light output. The bottom half of the holder unscrews to allow insertion of the LED. Sealed types give protection to IP66.
Spec
- Quantity：1piece
- Lampholder Type : Panel Mount
- Lamp Type : LED
- Lamp Base : Screw In
- Termination Type : Wire Leads
- Diameter : 10mm
- Length : 16.9 mm
- Lamp Size : 5 mm
- Panel Hole Diameter : 8mm
- Panel Thickness : 7mm
- CODE No.:237-0553
