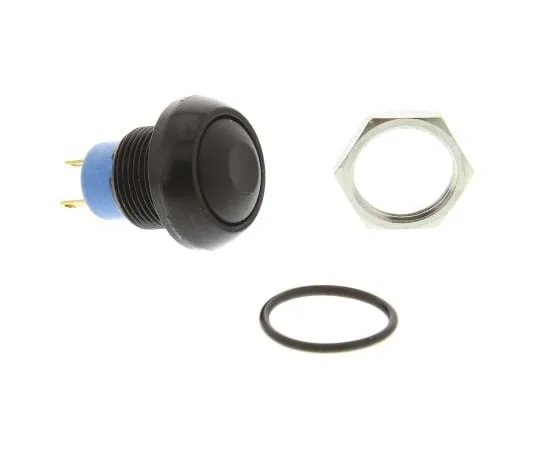

63-4740-91 APEM Single Pole Single Throw (SPST) Momentary Push Button Switch, IP67, 13.6 (Dia.)mm, Panel Mount, 28V dc IPR3SAD-2
Product Description
Product Model: 63-4740-91Product Brand: APEM Features E […]
Contact Us
Product Details
Product Model: 63-4740-91
Product Brand: APEM
Features
- EN 50102 - IEC 512-4 - IEC 512-6. Momentary pushbutton switches IP 67 Series IP – lug terminals, ø 12mm bushing. For harsh environments. Resistant to salt spray. Very robust: IK06. Excellent touch feedback. Available in round or square version.
Spec
- Quantity：1piece
- Switch Operation : Momentary
- Mounting Type : Panel Mount
- Illuminated : No
- Contact Configuration : Single Pole Single Throw (SPST)
- Panel Cut Out Size : 13.6 (Dia.)mm
- Panel Cut Out Diameter : 13.6mm
- IP Rating : IP67
- Actuator Colour : Black
- Voltage Rating : 28V dc
- Contact Current Rating : 5 A @ 28 V dc
- Actuator Shape : Dome
- Terminal Type : Solder
- Actuator Type : Plunger
- CODE No.:236-9373
