Features

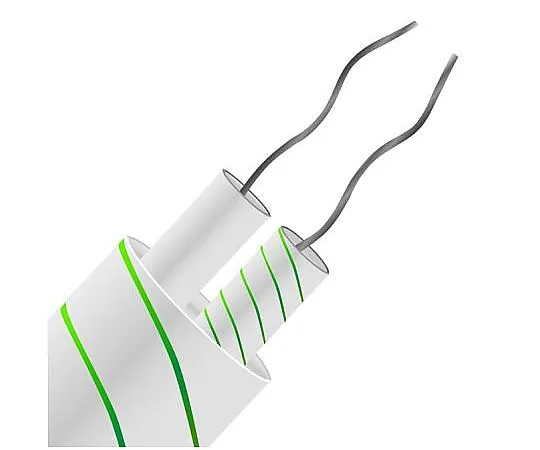

• BS4937 Part 30 1993 which conforms to IEC 584-3. Glass Fibre Insulated Extension Cable. Type K or J glassfibre flat pair with stainless steel overbraiding with good temperature resistance but not suitable where fluids are present. Features and Benefits. Stainless steel braided options Glass fibre insulated flat pair construction, conductors laid flat, glassfibre insulated with glass fibre jacket, silicone varnished throughout and stainless steel overbraid for added protection and mechanical strength Colour coded in accordance with BS4937 Pt 30 Temperature rating -60 to +350°C (short periods up to 400°C) Glass fibre insulated extension cable in thermocouple types; KX, JX or TX Good temperature resistance but not suitable where fluids are present Types KX ; TX available in solid 1/0.3mm conductors, JX in 7/0.2mm stranded conductors All types; conductors are made from associated K, J or T thermocouple alloy type Tolerance Class 2 to IEC-584 Insulation rating -60°C to 350°C (short periods up to 400°C) Colour code (cores ; jacket) to IEC-584-3
