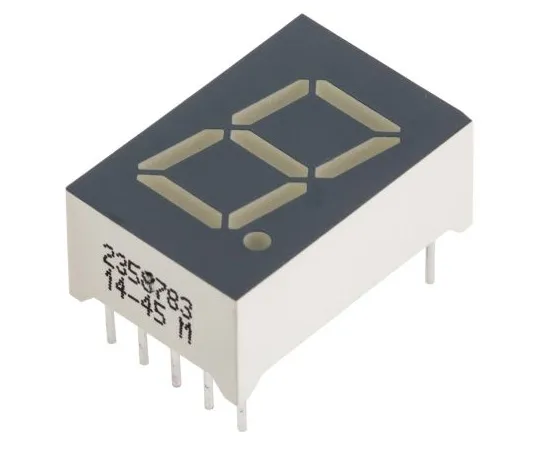

63-4740-49 SC05-11EWA Kingbright 7-Segment LED Display, CC Red 7.6 mcd RH DP 12.7mm SC05-11EWA
Product Description
Product Model: 63-4740-49Product Brand: Kingbright Feat […]
Contact Us
Product Details
Product Model: 63-4740-49
Product Brand: Kingbright
Features
- Kingbright Single Digit, 12.7 to 14.2mm. A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours. Low current operation Excellent character appearance Grey face with white segments Easy mounting on P.C. boards or sockets Categorized for luminous intensity Mechanically rugged RoHS compliant
Spec
- Quantity：1piece
- Display Type : 7-Segment
- Number of Characters : 1
- LED Colours : Red
- Number of Segments : 7
- Dominant Wavelength : 625 nm
- Character Width : 7.3mm
- Character Height : 12.7mm
- Common Connection : Cathode
- Mounting Type : Through Hole
- External Depth : 8mm
- Luminous Intensity : 7.6 mcd
- Colour of Face : Grey
- Power Dissipation : 75mW
- Decimal Orientation : Right Side
- CODE No.:235-8783
