67-4917-31 Coated Thermocouple Vinyl Copper/Constantin Φ0.32 Mm 100 M VT3
Product Description
Product Model: 67-4917-31Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 67-4917-31
Product Brand: CHINO CORPORATION
Features

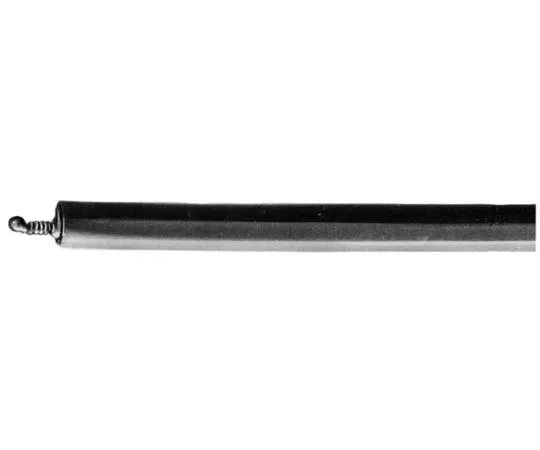

- This sensor is a thermocouple wire coated with vinyl. It is a thermocouple that can be ***d as it is without putting it in a protective tube.
- (+) Copper leg and (-) Copper leg/nickel alloy.
- Accuracy at low temperature is good.
- Good homogeneity.
- Suitable for reducing atmospheres.
- Coated thermocouples are products designed for temperature measurement. Do not *** for general wiring as it is not a conductor. (Doing so may ca*** electric shock, leakage, or fire.)
Spec
- Length: 100 m
- Coating Material: Vinyl
- Thermocouple Type: Copper/Constantin
- Wire Diameter: φ0.32 mm
- (Note)The thermocouple type and wire diameter are limited by the coating material.
- Source Wire: T
- Finished Outer Diameter: φ2.2 x 3.4 mm
- Normal temperature: 60°C
- Maximum temperature: 100°C
- core wire coating
- Material (+ side, - side): Vinyl
- Coating color: + side/red, - side/white
- outer covering
- Material: Vinyl
- Color: Brown
- JIS Class *: 2 (1)
- *JIS Class Tolerance (JIS C 1602-1995)
- Overheat within Operating Temperature Range () Operating Limit: -200~300 (350) °C
- Application: Acid and alkaline resistance, water resistance, organic chemical resistance Large (Excludes benzene, acetone, cyclohexane, etc.)
