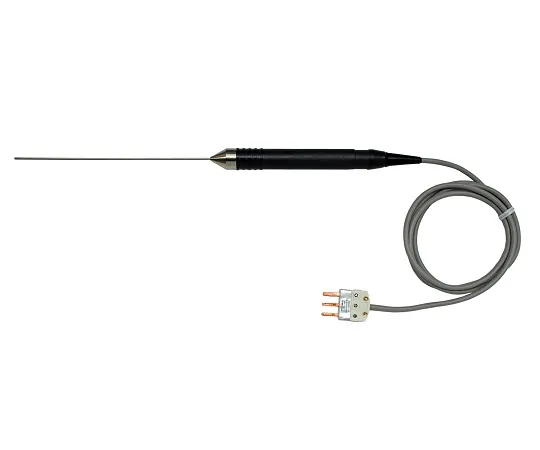

67-4917-28 Temperature Sensor Fast Sensitive Pt100 Φ1.6 X 150 Mm YR520-123
Product Description
Product Model: 67-4917-28Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 67-4917-28
Product Brand: CHINO CORPORATION
Spec
- temperature measuring resistor
- Tolerance: JIS Class A
- Element: Pt100, 3 Wire Connection Conductor, Connection Conductor for Temperature Measuring Resistor, Soft Vinyl, 1.2 m
- Measurement Range: -50~300°C
- Protection Tube: φ1.6 x L150mm SUS316
- Response time: Approximately 2.3 seconds (Stirred water, 90% response)
- In a Vinyl Case
