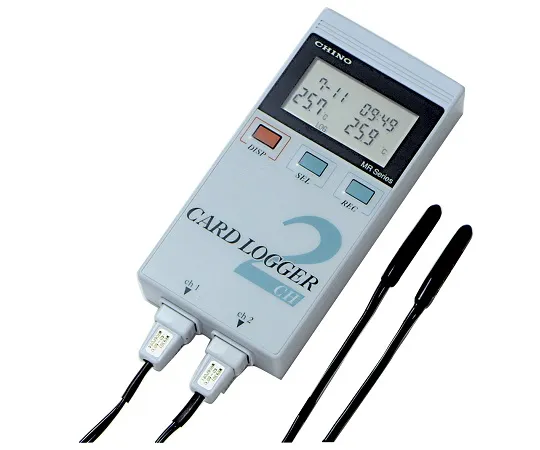

67-4916-40 2-Channel Temperature Card Logger MR5320
Product Description
Product Model: 67-4916-40Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 67-4916-40
Product Brand: CHINO CORPORATION
Features
- The 2 Channel Temperature Card Logger MR5320 is a lightweight and compact temperature recorder that can record temperatures at 2 locations and store 6000 data per channel.
- It can be connected to a personal computer via the MR9504 reader to display and print numerical tables of all data and tr*** graphs. The stored data can be easily processed and processed using commercially available spreadsheet software.
- It can issue traceability certificates and test results suitable for HACCP, IS09000 and IS014000. (Sold separately)
- Washable IP64 dust-proof drip-proof structure.
- Retains recorded data for a long time even if the battery runs out.
- The number of recorded data is 6000 for each channel. The interval between measurements is 10 to 50 seconds or 1 to 60 minutes.
- High precision ±0.5°C (between -5~50°C).
- Automatic stop mode or Doreless mode is selected as the data recording method.
- Two temperature ranges can be measured with one card logger.
- Various types of external temperature sensors such as general-purpose, drip-proof, surface, and needle-like.
- CE marking compliance.
- Use
- Temperature recording of tests and research
- For Temperature Difference Recording
- Temperature recording of greenho***s and vinyl greenho***s
- Multi-point temperature recording for various applications
- Temperature control of two-tank refrigeration and refrigeration vehicles
Spec
- Measurement Range: -40~60°C, 0~100°C, 50~150°C (Range is switched by automatically detecting the external sensor to be ***d)
- *1 channel with built-in sensor, measurement range is – 20~55°C
- Accuracy rating: ±0.5°C±1digit (in the range of − 5~50°C)
- *±1.0°C±1digit other than above
- Temperature sensor: Internal (1 channel only)/External switching
- *Various external sensors (sold separately) are available, such as general, drip-proof tube, needle type, and surface temperature measurement.
- Input point: 2 points
- Number of recorded data: 6000 data per channel
- Information displayed (each channel)
- Current data = Month, Day, Hour, Minute, 1 channel and 2 channel measured temperature
- Readout data = maximum and minimum temperatures of channels 1 and 2 during the recording period, and average temperature of recorded data
- Setting parameter = Upper and lower alarm settings for channels 1 and 2
- Body Possible Operation
- Display start (with auto-off function: Display goes off after 1 minute when no operation is performed)
- Switching display contents (Clock setting, recording start/stop, Key lock setting/release)
- *There are three operation keys: DISP, SEL, and REC.
- communication function
- Near infrared optical communication with dedicated data reader (sold separately)
- Readout of various parameter settings, recorded data and recording conditions by dedicated analysis software
- Computer settings (dedicated analysis software): clock, recording start time, recording stop time (recording interval in minutes), measurement/recording interval (10 to 50 seconds or 1 to 60 minutes), upper/lower alarm temperature, main unit key lock, recording method (automatic stop/***less)
- Power: 2 AAA alkaline batteries
- Battery life: Approx. 1 year (Operating ambient temperature: 25°C, measurement interval: 1 minute, recording time)
- Operating temperature and humidity range: -20~55°C, 10~80%RH or less (under non-condensation conditions)
- Storage temperature and humidity range: – 20~55°C, 90%RH or less (non-condensing conditions)
- Case Protection Structure: IP64 (Washable)
- External Dimensions/Weight: W54 x H110 x D20.5mm, Approximately 95 g (including batteries)
