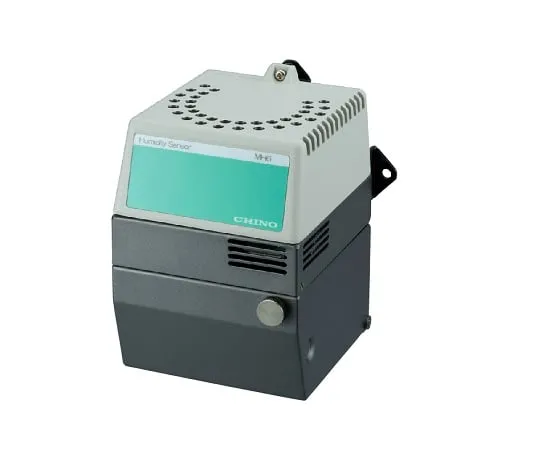

67-4916-35 Mh6 Series Thermal Conductive Saturation Meter 4-20 Ma MH6A20
Product Description
Product Model: 67-4916-35Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 67-4916-35
Product Brand: CHINO CORPORATION
Features
- For measurement of temperature and humidity in test rooms that are prone to high humidity, or in growing environments for animals and plants
- Accurate measurement of temperature, humidity and saturation is very important to ensure product quality and the growth of crops.
- Take advantage of our thermal conductivity hygrometer and saturation meter, which are in principle not affected by condensation.
- Equipped with a humidity sensor based on a new principle
- Heat conduction type humidity sensors do not condense and are less susceptible to chemical substances beca*** the humidity sensing part is heated to several hundred degrees.
- Outstanding high humidity response
- Accurate measurement is possible due to the fast response and no saturation even in high humidity zones
- Measurement by saturation, which is easy to *** for plant growth
- The humidity condition, which is important for the cultivation environment of crops, can be measured by the index "saturation difference" which is directly connected with the growth of crops.
- Accurate measurement in draft form
- The ventilated type is suitable for measurement in places and atmospheres where air t***s to get trapped.
- Easy maintenance!
- The measuring section can be easily replaced in a unit configuration.
Spec
- Humidity
- Sensors: Heat Conductive
- output: saturation
- Measurement range: 0~48 g/m3 (noncondensing)
- Accuracy rating: ±1.0 g/m3(At 25°C and 50%rh)
- Response time: 60 seconds or less (90% response at constant 25°C)
- Output signal: 4~20 mA DC (in the measurement range)
- Load resistance: 500 Ω or less
- Temperature
- Sensor: Thermistor
- Measurement Range: 0~60°C
- Accuracy rating: ± (0.5+0.02|T-25|) °C T: ambient temperature
- Response time: 6 minutes or less (90% response, step from 10 degrees C to 25 degrees C, in still air)
- Output signal: 4~20 mA DC for 0~60°C
- Load resistance: 500 Ω or less
- Sensor part compatibility: compatibility
- Operating Temperature Range: 0~60°C
- Supply voltage (power consumption): 24 VDC ±10% (approx. 4VA)
- Connection method: Terminal connection (M3.5 x 7)
- Mounting Method: Screw (M5 x 2)
- Material: Steel Plate
- Mass: Approx. 1.3 kg
- Other: Output compensation (0 shift) ±5% humidity response variable function (maximum time constant 64 s)
- External Dimensions (Excluding Some Protrusions)
Related product recommendations
You may also be interested in the following products

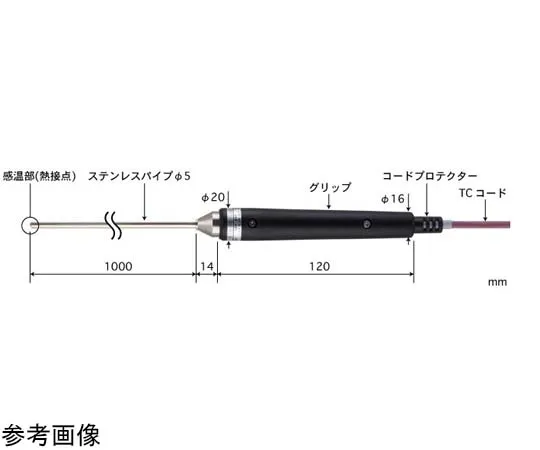

65-3533-24 [Out of stock]Semi-Solid/Liquid General Temperature Sensor BS Series with ISO Document Set -200~500°C Outer Diameter 5φ 1000 mm E Type BS-51E-100-TC1-ASP
model: 65-3533-24
brand: ANRITSU METER CO., LTD.
64-3426-87 5-Stage Stand for Digital temperature controller monoone -120 monoOne-120STND
model: 64-3426-87
brand: ThreeHigh

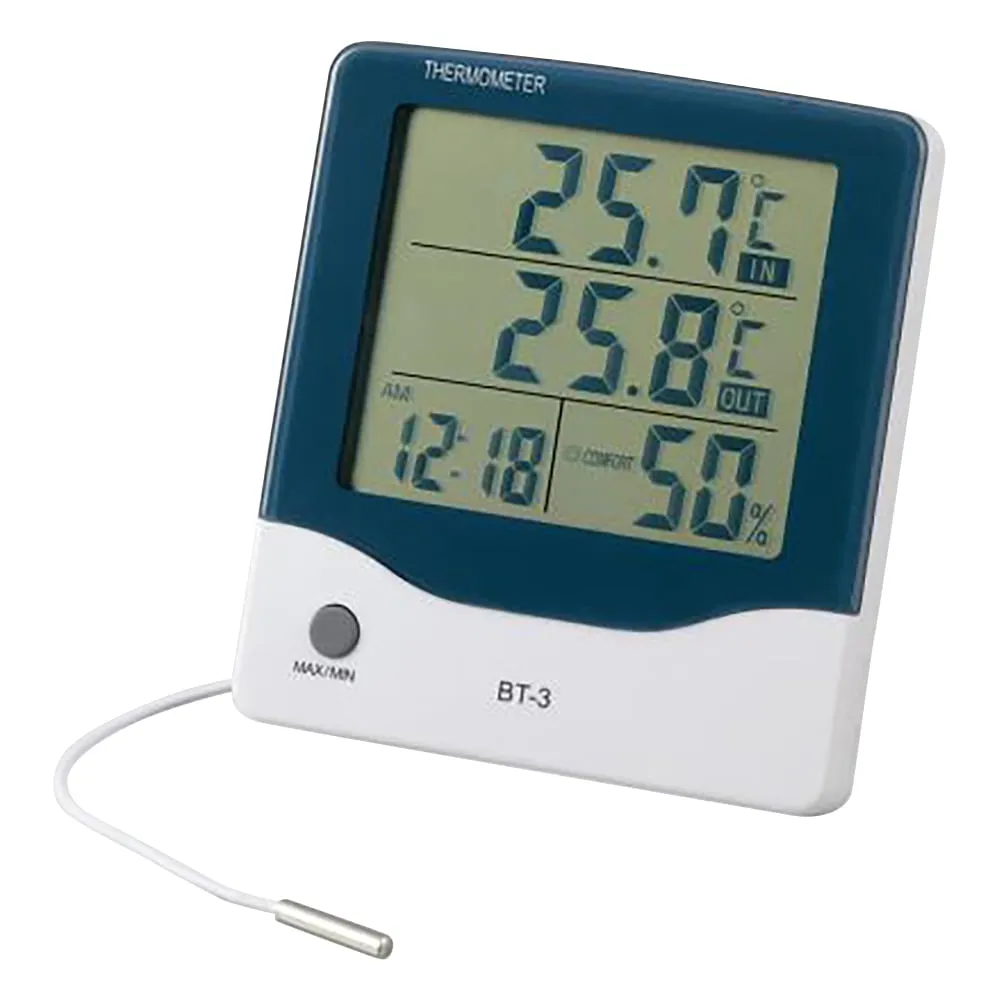

2-897-01 [Discontinued]Large Screen Thermo-Hygrometer with Alarm Clock BT-3
model: 2-897-01
brand: AS ONE Corporation

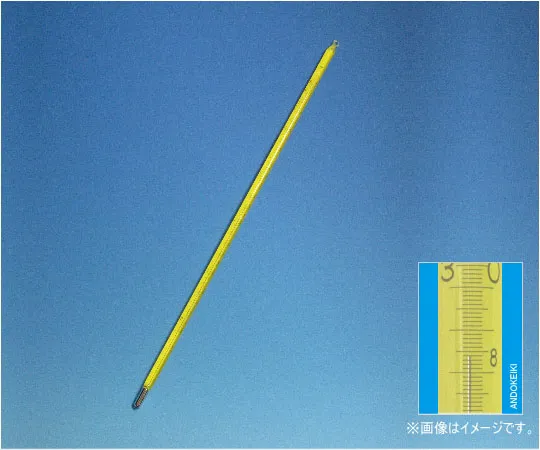

64-0704-41 [Discontinued]Standard Rod Thermometer (Yellow Tube) -56 ~ 0 °C (0.1) with JCSS Calibration Certification 1-06-0Y-JCSS
