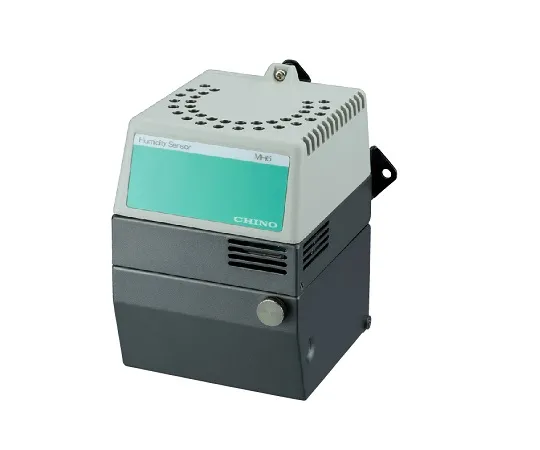

67-4916-34 Mh6 Series Heat Conduction Hygrometer 4-20 Ma MH6A10
toner

67-4916-34 Mh6 Series Heat Conduction Hygrometer 4-20 Ma MH6A10

model: 67-4916-34
brand: CHINO CORPORATION
category: toner

Product Description

Product Model: 67-4916-34Product Brand: CHINO CORPORATI […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 67-4916-34
Product Brand: CHINO CORPORATION

Features

  • For measurement of temperature and humidity in test rooms that are prone to high humidity, or in growing environments for animals and plants
  • Accurate measurement of temperature, humidity and saturation is very important to ensure product quality and the growth of crops.
  • Take advantage of our thermal conductivity hygrometer and saturation meter, which are in principle not affected by condensation.
  • Equipped with a humidity sensor based on a new principle
  • Heat conduction type humidity sensors do not condense and are less susceptible to chemical substances beca*** the humidity sensing part is heated to several hundred degrees.
  • Outstanding high humidity response
  • Accurate measurement is possible due to the fast response and no saturation even in high humidity zones
  • Measurement by saturation, which is easy to *** for plant growth
  • The humidity condition, which is important for the cultivation environment of crops, can be measured by the index "saturation difference" which is directly connected with the growth of crops.
  • Accurate measurement in draft form
  • The ventilated type is suitable for measurement in places and atmospheres where air t***s to get trapped.
  • Easy maintenance!
  • The measuring section can be easily replaced in a unit configuration.

Spec

  • Humidity
  • Sensors: Heat Conductive
  • Output: Relative Humidity
  • Measuring range: 0~100%rh (noncondensing)
  • Accuracy rating: ±5%rh(At 25°C and 50%rh)
  • Response time: 60 seconds or less (90% response at constant 25°C)
  • Output signal: 4~20 mA DC (in the measurement range)
  • Load resistance: 500 Ω or less
  • Temperature
  • Sensor: Thermistor
  • Measurement Range: 0~60°C
  • Accuracy rating: ± (0.5+0.02|T-25|) °C T: ambient temperature
  • Response time: 6 minutes or less (90% response, step from 10 degrees C to 25 degrees C, in still air)
  • Output signal: 4~20 mA DC for 0~60°C
  • Load resistance: 500 Ω or less
  • Sensor part compatibility: compatibility
  • Operating Temperature Range: 0~60°C
  • Supply voltage (power consumption): 24 VDC ±10% (approx. 4VA)
  • Connection method: Terminal connection (M3.5 x 7)
  • Mounting Method: Screw (M5 x 2)
  • Material: Steel Plate
  • Mass: Approx. 1.3 kg
  • Other: Output compensation (0 shift) ±5% humidity response variable function (maximum time constant 64 s)
  • External Dimensions (Excluding Some Protrusions)
