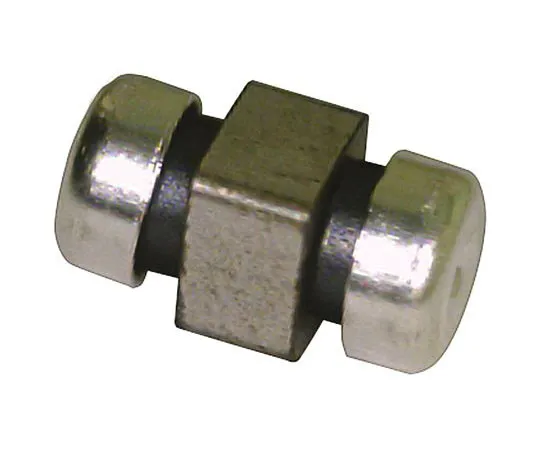

63-4739-18 Murata NFE31P Series 6A 25 V dc SMD Feedthrough Capacitor, with Solder Pad Terminals NFE31PT222Z1E9L
Product Description
Product Model: 63-4739-18Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-4739-18
Product Brand: Murata
Features
- NFE31P Series. From Murata, the NFE31PT series range consists of T-type circuit EMI suppression filters. These suppression filters feature a large rated current of 6A and low voltage drop due to small DC resistance. This ensures that NFE31PT EMI suppression filters are suitable for DC power line ***. Constructed with incorporated ferrite beads, resonance with surrounding circuits is kept to a minimum. The feedthrough capacitors ensure high frequency characteristics for these EMI suppression filters.
Spec
- Quantity：1bag(20pieces)
- Maximum Current Rating : 6A
- Maximum Voltage Rating : 25 V dc
- Mounting Type : Surface Mount
- Termination Style : Solder Pad
- Series : NFE31P
- Length : 3.2mm
- Depth : 1.6mm
- Height : 1.6mm
- Dimensions : 3.2 x 1.6 x 1.6mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- CODE No.:230-3727
