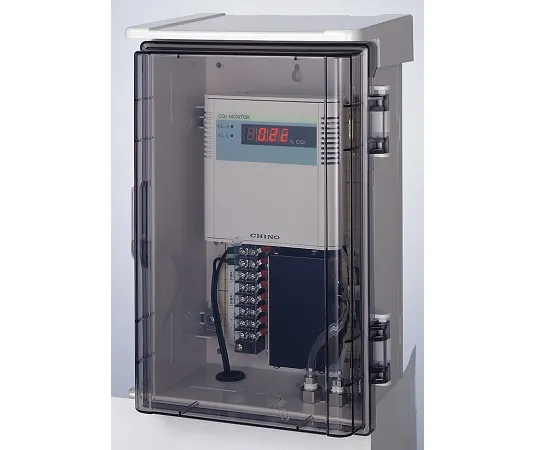

67-4913-66 Maseries Wall-Mounted Suction Type Solid Electrolyte System With Co2 Monitor Alarm Function 1~5 V 0.01~10.00% MA1001-1P
Product Description
Product Model: 67-4913-66Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 67-4913-66
Product Brand: CHINO CORPORATION
Features
- Constant monitoring of CO2 concentration for environmental management
- By adding a suction pump to the wall-mounted CO2 monitor of the solid electrolyte system, CO2 concentration can be measured even in places where it is difficult to mount the CO2 monitor directly.
- Since it is not affected by high humidity * and atmospheric pollution, it is excellent for air measurement in semi-free space, etc.
- * Continuous operation is required.
- Main Use
- Control and control of CO2 concentration in grain and fruit storage
- Control and control of CO2 concentration in plant cultivation facilities
- Air Quality Control in Food Freezing and Refrigeration Processes
- Air quality management in offices, meeting rooms, schools, and other spaces where people gather
- Gas leak monitoring of CO2 fire extinguishing equipment
Spec
- Model: With Alarm Function
- Measurement Method: Lithium Ion Solid Electrolyte Method
- Transmission signal: 1~5 V DC
- Measuring range: 0.01~10.00%
- Sample Method: Suction Pump Type (Suction pressure 3 kPa, maximum flow rate 2 L/min)
- Response time: Within 120 seconds (90% response/Not including the response of the tube ***d)
- Measurement value display: 4 digits (digital display with red LED)
- Suction gas temperature range: 0~40°C
- Operating Temperature/Humidity Range: 0~40°C/0~95%RH (No Condensation)
- Power: 100 VAC ±10%, 50/60Hz
- Power Consumption: Approx. 13VA
- Mass: Approx. 2.3 kg
- Material: Body/ABS Resin, Cover/Acrylic Resin
- *Refer to wall-mounted CO2 monitor for other specifications.
- ISO 14001 Certified JQA-EM2414
- ISO 9001 Certification JQA-0656
