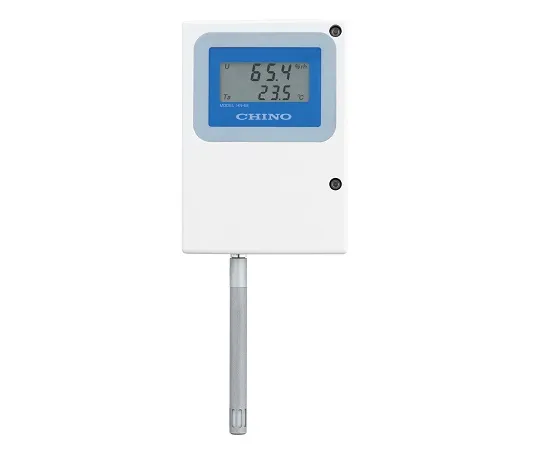

Spec

• Sensor Shape: Integrated
• Humidity output: 0~100%rh
• Temperature output span: – 40~60°C (typical)
• Format: HN-E800
• Humidity sensor: polymer capacitance type
• Measurement Range: 0~100%rh * 1
• Accuracy rating * 2: ±2%rh(Less than 5~90%rh at 25 deg.), ±3%rh(At 90~95%rh and 25°C)
• Output Specifications: 4~20mADC 2 wire transmission (for 0~100% rh)
• Response time: 60 seconds or less (90% response)
• Load resistance: 250 Ω or less
• Temperature Sensor: Platinum Temperature Measuring Resistor Pt100
• Measurement Range: -20~60°C
• Accuracy rating * 2: ±0.2°C (at 25°C)
• Output specifications: 4~20mADC 2 wire transmission
• Load resistance: 250 Ω or less
• Type of explosion-proof structure: intrinsically safe explosion-proof (ia)
• Target gas ignition/explosion class: IIC T4Ga
• Honan-related equipment: 2 insulation barrier B5541 units are ***d.
• Type Examination Passing Number: TC22593X
• Power supply voltage: 24 VDC ±10%
• Power Consumption: Approx. 1VA
• Operating Humidity Range: 0~100%rh * 1
• Operating temperature range: -20~60°C
• Mass (Body Only): Approx. 1.8 kg
• *1 However, dew condensation shall not occur.
• *(2) Accuracy of measurement in a sufficiently stable environment at 25°C in a constant temperature bath
