Electronic/Electrical Parts and Controll Equipments

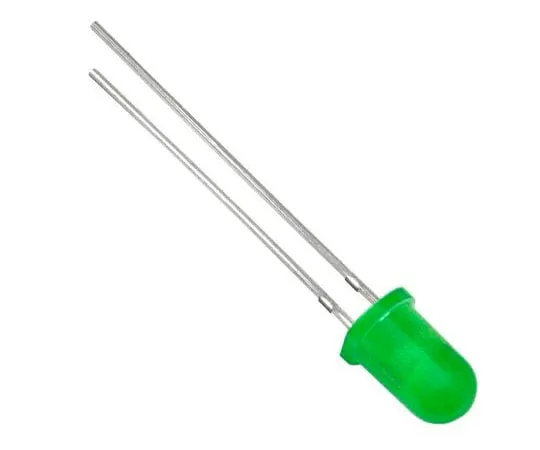

63-4738-63 14 V Green LED 5mm Through Hole, Kingbright L-53GD-12V L-53GD-12V
Product Description
Product Model: 63-4738-63Product Brand: Kingbright Feat […]
Contact Us
Product Details
Product Model: 63-4738-63
Product Brand: Kingbright
Features
- Kingbright Through Hole Resistor LED Series. The resistor LED lamps, from Kingbright, are available in 3mm and 5mm package options. The LEDs have an integral current limiting resistor. The resistor LEDs do not require an external current limiter with 12 volt supply. This allows the resistor LEDs to be a cost effective solution, saving valuable space and eliminating the additional cost for a resistor. There are a variety of colour options available in the resistor range, with a wide viewing angle of 60°.
Spec
- Quantity：1bag(5pieces)
- LED Colours : Green
- Package Type : 5mm (T-1 3/4)
- Mounting Type : Through Hole
- Number of LEDs : 1
- Forward Voltage : 14 V
- Luminous Intensity : 20 mcd
- Number of Pins : 2
- Viewing Angle : 60 °
- Lens Shape : Round
- Dominant Wavelength : 568 nm
- Dimensions : 5 x 8.6mm
- Lens Colour : Green
- CODE No.:228-5629
