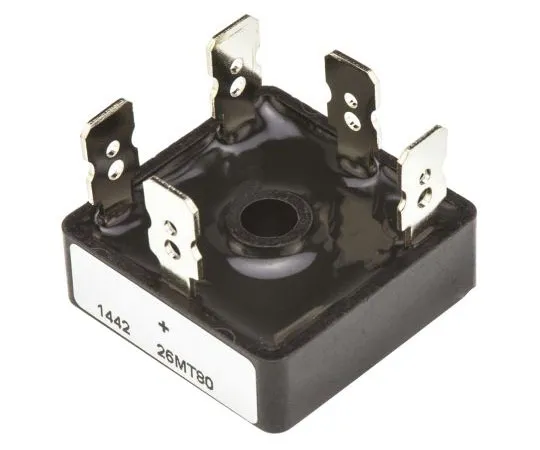

63-4738-08 Vishay VS-26MT80, 3-phase Bridge Rectifier, 25A 800V, 5-Pin D 63 VS-26MT80
Product Description
Product Model: 63-4738-08Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4738-08
Product Brand: Vishay
Features
- UL E300359. Three Phase Bridge Rectifiers with Push-on Terminals, VS-26MT Series, Vishay Semiconductor. Universal, 3-way terminals: Push-on, wrap around or solder High thermal conductivity package, electrically insulated case Center hole fixing Excellent power/volume ratio
Spec
- Quantity：1piece
- Bridge Type : Three Phase
- Peak Average Forward Current : 25A
- Peak Reverse Repetitive Voltage : 800V
- Mounting Type : Through Hole
- Package Type : D 63
- Pin Count : 5
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 375A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.26V
- Peak Reverse Current : 200µA
- Length : 28.5mm
- Height : 10mm
- CODE No.:227-8839
