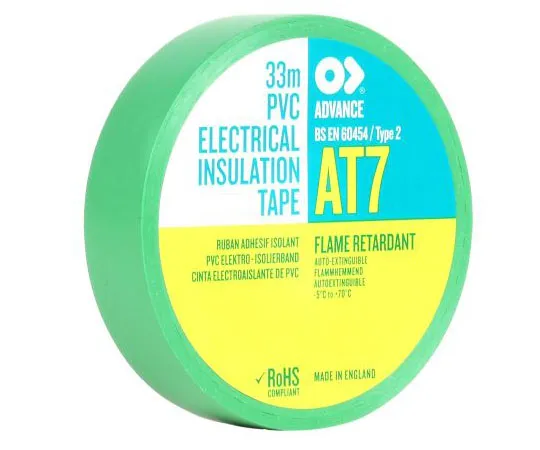

63-4737-96 Advance Tapes Green Electrical Tape, 19mm x 33m 193882
Electronic/Electrical Parts and Controll Equipments

63-4737-96 Advance Tapes Green Electrical Tape, 19mm x 33m 193882

model: 63-4737-96
brand: Advance Tapes

Product Description

Product Model: 63-4737-96Product Brand: Advance Tapes F […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4737-96
Product Brand: Advance Tapes

Features

  • Advance Tapes AT7 - PVC Electrical Insulation Tape. The AT7 range of electrical tape from Advance Tapes is a PVC based insulation tape suitable for any number of electrical applications. With a breakdown voltage over 8000 V, the 0.13mm PVC tape ***s a rubber resin for reliable contact and adhesion over time. The flame retardant tape is self-extinguishing and meets BS EN 60454-3-1/Type 2 legislation as well as being RoHS compliant. Suitable for almost any industrial, residential or DIY application AT7 tapes are both water and UV resistant and come in a range of colours. Features ; Benefits High breakdown voltage for excellent electrical insulation -5 to +70 °C working temperature for industrial and residential *** Available in 10m, 20m and 33m rolls 12mm, 19mm and 28mm tape widths for various scale working Water Resistant UV Resistant Non-corrosive adhesive to protect surfaces Flame retardant and self-extinguishing for safe ***. AT7 Range Options Assorted Pack: 12mm 20m ; 504-2380 504-2380 19mm 10m ; 504-2403 504-2403 19mm 20m ; 511-4312 511-4312 19mm 33m ; 504-2396 504-2396

Spec

  • Quantity:1roll(33m)
  • Colour : Green
  • Backing Material : PVC
  • Width : 19mm
  • Length : 33m
  • Thickness : 0.13mm
  • Minimum Operating Temperature : -5°C
  • Maximum Operating Temperature : +70°C
  • Adhesive Material : Rubber Resin
  • Trade Name : AT7
  • Adhesion Strength : 2.4 N/cm
  • Complies with EN Legislation : BS EN 60454-3-1/Type 2
  • Tensile Strength : 26N/cm
  • Breakdown Voltage : 8000V
  • CODE No.:227-3008
