Electronic/Electrical Parts and Controll Equipments

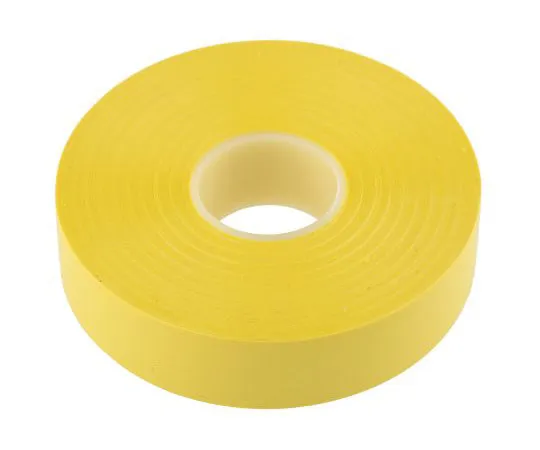

63-4737-92 Advance Tapes Yellow Electrical Tape, 19mm x 33m 193844
model:
63-4737-92
brand:
Advance Tapes
Product Description
Product Model: 63-4737-92Product Brand: Advance Tapes F […]
Contact Us
Product Details
Product Model: 63-4737-92
Product Brand: Advance Tapes
Features
- Advance Tapes AT7 - PVC Electrical Insulation Tape. The AT7 range of electrical tape from Advance Tapes is a PVC based insulation tape suitable for any number of electrical applications. With a breakdown voltage over 8000 V, the 0.13mm PVC tape ***s a rubber resin for reliable contact and adhesion over time. The flame retardant tape is self-extinguishing and meets BS EN 60454-3-1/Type 2 legislation as well as being RoHS compliant. Suitable for almost any industrial, residential or DIY application AT7 tapes are both water and UV resistant and come in a range of colours. Features ; Benefits High breakdown voltage for excellent electrical insulation -5 to +70 °C working temperature for industrial and residential *** Available in 10m, 20m and 33m rolls 12mm, 19mm and 28mm tape widths for various scale working Water Resistant UV Resistant Non-corrosive adhesive to protect surfaces Flame retardant and self-extinguishing for safe ***. AT7 Range Options Assorted Pack: 12mm 20m ; 504-2380 504-2380 19mm 10m ; 504-2403 504-2403 19mm 20m ; 511-4312 511-4312 19mm 33m ; 504-2396 504-2396
Spec
- Quantity:1roll(33m)
- Colour : Yellow
- Backing Material : PVC
- Width : 19mm
- Length : 33m
- Thickness : 0.13mm
- Minimum Operating Temperature : -5°C
- Maximum Operating Temperature : +70°C
- Adhesive Material : Rubber Resin
- Trade Name : AT7
- Adhesion Strength : 2.4 N/cm
- Complies with EN Legislation : BS EN 60454-3-1/Type 2
- Tensile Strength : 26N/cm
- Breakdown Voltage : 8000V
- CODE No.:227-2926
Related product recommendations
You may also be interested in the following products

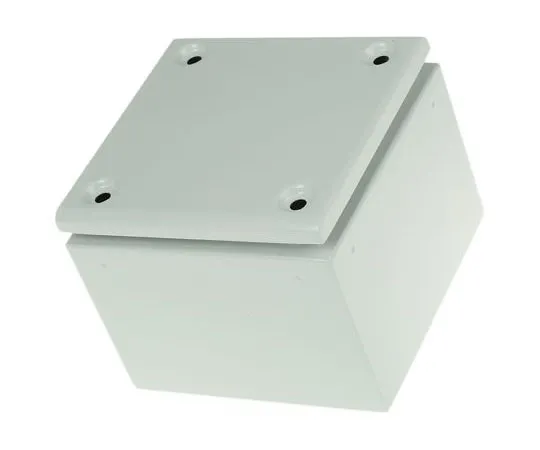

63-7971-80 Schneider Electric Spacial SBM, Steel Wall Box, IP66, 120mm x 150 mm x 150 mm NSYSBM151512
