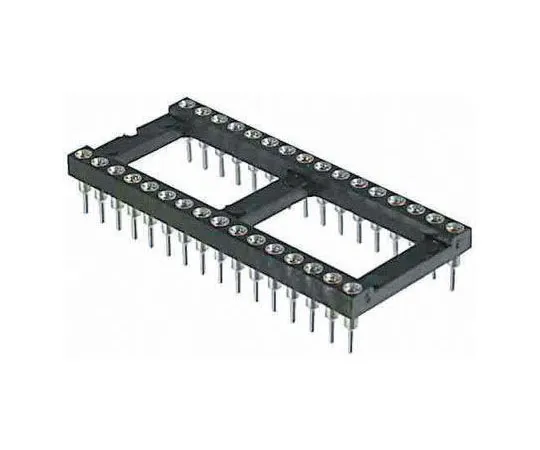

63-4737-51 Winslow 2.54mm Pitch Vertical 28 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A W30528SFTRC
Product Description
Product Model: 63-4737-51Product Brand: Winslow Feature […]
Contact Us
Product Details
Product Model: 63-4737-51
Product Brand: Winslow
Features
- Ultra Low Profile Gold-Plated Contact DIL Sockets. These sockets have the same specification as the Type 3, low profile versions, but with super flat hollow tail contacts which allow the height of the IC above the PCB to be reduced, as the IC can sit lower in the socket (as shown in the above diagram).
Spec
- Quantity：1set(14pieces)
- Number of Contacts : 28
- Mounting Type : Through Hole
- Pin Type : Turned
- Pitch : 2.54mm
- Row Width : 15.24mm
- Frame Type : Open Frame
- Termination Method : Solder
- Contact Plating : Gold, Tin
- Current Rating : 3A
- Orientation : Vertical
- Length : 35.48mm
- Width : 3.5mm
- Depth : 17.66mm
- Dimensions : 35.48 x 3.5 x 17.66mm
- Housing Material : PBT
- CODE No.:226-3916
