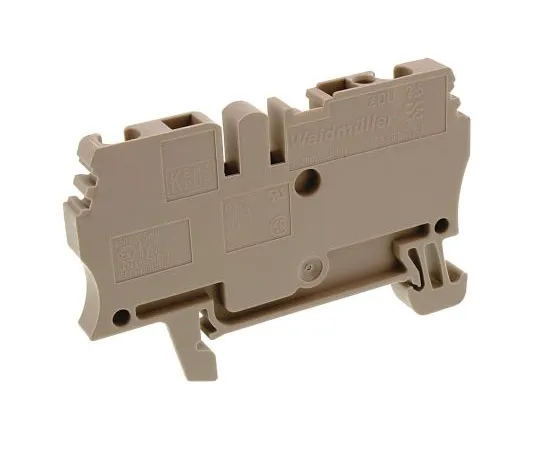

63-4737-13 Weidmuller, ZDU Series , 600 V Feed Through Terminal Block, Clamp Termination 1608510000
Product Description
Product Model: 63-4737-13Product Brand: Weidmuller Feat […]
Contact Us
Product Details
Product Model: 63-4737-13
Product Brand: Weidmuller
Features
- CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI. The ZDU 10 and ZDU 16 terminals only have CSA and UL Approvals. Standard Terminals. Screwless Z series DIN mounting terminals offer a top entry system that saves time and space. Quick and easy installation as the conductor is inserted using the clamping system. The top entry system means that the conductor entry and clamp actuation access is from the same direction. Features and Benefits. Tension clamp connection Continuous temperature rating of 120°C- self-extinguishing to UL94V-0 Available in variety of sizes Ideal when space is confined
Spec
- Quantity：1bag(5pieces)
- Series : ZDU
- Wire Size : 30 → 12 AWG
- Cable CSA : 2.5mm²
- Colour : Brown
- Current Rating : 31A
- Number of Levels : Single
- Termination Method : Clamp
- Voltage Rating : 600 V
- Minimum Operating Temperature : -50°C
- Maximum Operating Temperature : +120°C
- CODE No.:225-9894
