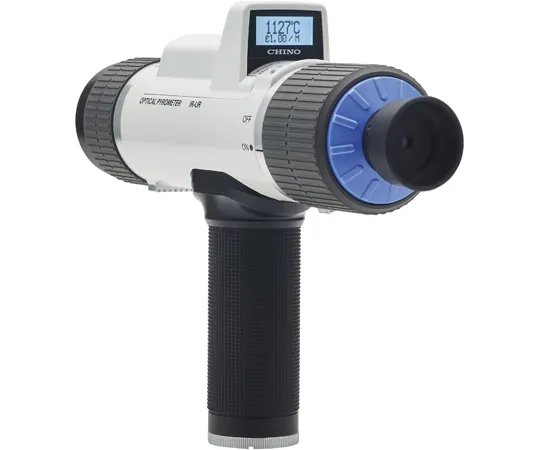

67-4762-08 Digital Optical Pyrometer IR-URN
Product Description
Product Model: 67-4762-08Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 67-4762-08
Product Brand: CHINO CORPORATION
Features
- The temperature is measured by adjusting the current flowing through the filament while observing with the naked eye so that the color of the filament of the bulb built into the body matches the color of the object to be measured.
- By switching 3 ranges of L, M and H, measurement can be made in a wide temperature range up to 700~3500°C.
- The digital display reduces reading errors and is easy to operate, making it possible to measure high-temperature objects in a short time without contact.
- Digital display reduces reading errors
- Design that can be operated by either hand
- Equipped with an emissivity correction function tailored to the measurement target
Spec
- Measurement wavelength: 0.65 μm
- Temperature Range: Range Toggle
- L:700~1300°C
- M:1000~2000°C
- H:1400~3500°C
- accuracy rating
- L, M range: ±0.6% of maximum value
- H range: +/- 1.2% of maximum value
- Display resolution: 1°C
- Measuring distance: 0.3 m or more
- Power: 4 AA batteries (rechargeable batteries available)
- Dimensions: W271xH201xD48mm
- Weight: Approx. 1.3 kg (excluding batteries)
- Accessories: Carrying case, 4 AA batteries (alkaline batteries) and 4 spare batteries, total of 8
