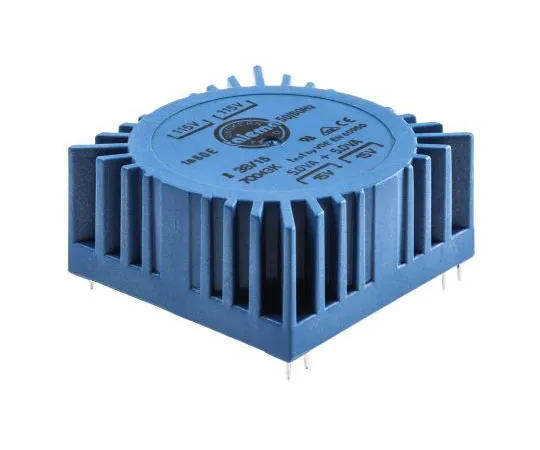

63-4735-83 2 Output Toroidal Transformer, 10VA, 2 x 15V ac 70043K
model:
63-4735-83
brand:
Nuvotem Talema
Product Description
Product Model: 63-4735-83Product Brand: Nuvotem Talema […]
Contact Us
Product Details
Product Model: 63-4735-83
Product Brand: Nuvotem Talema
Features
- EN60950, VDE0805, UL506, UL1950, UL6500. UL recognised, VDE. Miniature Encapsulated PCB Mount 115/230Vac Primary Transformers. This series of fully encapsulated PCB mounting toroidal transformers feature twin 115 V ac 50/60Hz primary windings that can be connected in series to a 230 V supply or in parallel for 115 V supplies. With a low weight and compact size, these toroidal transformers are ideal where space is at a premium, offering low magnetic interference, low noise and high efficiency. An M4 central bush allows for easy mounting. Low profile compact design Fully encapsulated to UL94-V0 Extremely low level of radiated magnetic field Extremely low level of hum and noise High efficiency and low temperature rise Ease of mounting 100% electrical and flash tested
Spec
- Quantity：1piece
- Primary Voltage Rating : 115V ac, 230V ac
- Secondary Voltage Rating : 2 x 15V ac
- Power Rating : 10VA
- Number of Outputs : 2
- Secondary Current : 333mA
- Weight : 252g
- Dimensions : 55 x 55 x 26mm
- Minimum Operating Frequency : 50Hz
- Maximum Operating Frequency : 60Hz
- Mounting Type : PCB
- Termination Type : Pin
- Fixing Hole Diameter : M4
- Maximum Temperature : +60°C
- CODE No.:223-9288
