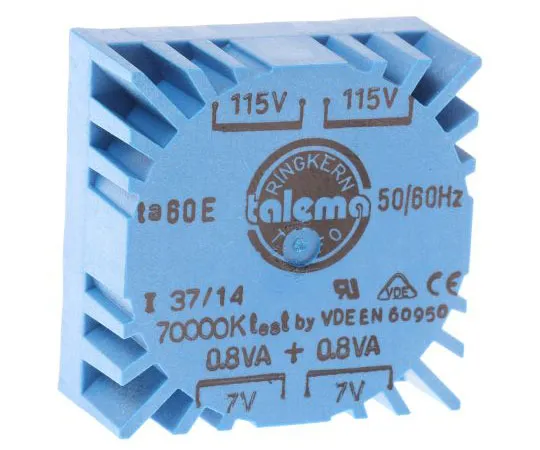

63-4735-61 2 Output Toroidal Transformer, 1.6VA, 2 x 7V ac 70000K
Electronic/Electrical Parts and Controll Equipments

63-4735-61 2 Output Toroidal Transformer, 1.6VA, 2 x 7V ac 70000K

model: 63-4735-61
brand: Nuvotem Talema

Product Description

Product Model: 63-4735-61Product Brand: Nuvotem Talema […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4735-61
Product Brand: Nuvotem Talema

Features

  • EN60950, VDE0805, UL506, UL1950, UL6500. UL recognised, VDE. Miniature Encapsulated PCB Mount 115/230Vac Primary Transformers. This series of fully encapsulated PCB mounting toroidal transformers feature twin 115 V ac 50/60Hz primary windings that can be connected in series to a 230 V supply or in parallel for 115 V supplies. With a low weight and compact size, these toroidal transformers are ideal where space is at a premium, offering low magnetic interference, low noise and high efficiency. An M4 central bush allows for easy mounting. Low profile compact design Fully encapsulated to UL94-V0 Extremely low level of radiated magnetic field Extremely low level of hum and noise High efficiency and low temperature rise Ease of mounting 100% electrical and flash tested

Spec

  • Quantity:1piece
  • Primary Voltage Rating : 115V ac, 230V ac
  • Secondary Voltage Rating : 2 x 7V ac
  • Power Rating : 1.6VA
  • Number of Outputs : 2
  • Secondary Current : 114mA
  • Weight : 82g
  • Dimensions : 39.6 x 39.6 x 18.5mm
  • Minimum Operating Frequency : 50Hz
  • Maximum Operating Frequency : 60Hz
  • Mounting Type : PCB
  • Termination Type : Pin
  • Fixing Hole Diameter : M4
  • Maximum Temperature : +60°C
  • CODE No.:223-8982
