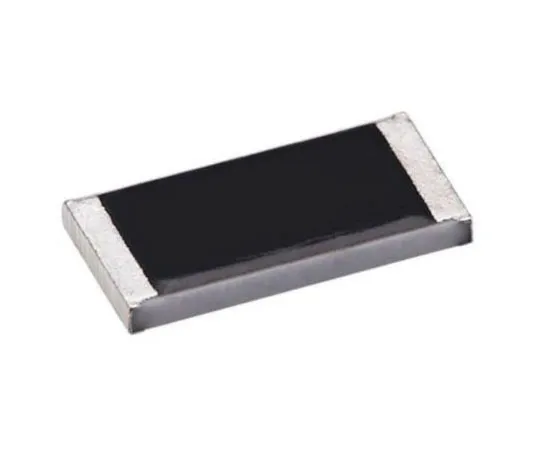

63-4735-17 270Ω 1206 Thick Film SMD Resistor ±1% 0.25W - CRG1206F270R CRG1206F270R
model:
63-4735-17
brand:
TE Connectivity
Product Description
Product Model: 63-4735-17Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4735-17
Product Brand: TE Connectivity
Features
- TE Connectivity CRG1206 SMD Resistor. TE Connectivity CRG1206 Series Thick film resistors feature a high power to size ratio, ideally suited to industrial and general purpose ***. The CRG1206 Series resistors are suitable for most applications, including high-frequency operation, owing to the short lead structure and low capacitance. Features and Benefits. A range from 1 ohm to 10M and tolerances of 1% and 5%, including zero ohm links. Seven Package Sizes Terminal finish: Matte Sn Moisture sensitivity level: Level 2. Construction. Precious metal terminations are printed on to a ceramic base and fired. The resistive element is then screen printed and the passivation layer added. The resistor is trimmed to tolerance by a laser. The Prescribed tile is broken into strips, the *** plating is fired and the strips broken into individual components. Final termination is made by electroplating. What is MSL? (Moisture Sensitivity Level). Moisture sensitivity level relates to the handling and packaging precautions on semiconductors and passive components. Moisture sensitivity level: Level 2 (1 year ;+30/60%). What is a 1206 pack size?. The resistor size is indicated numerically 1206 this indicates the length and width. Normally shown in imperial The package size will be in imperial but the dimensions will be shown in mm
Spec
- Quantity:1bag(50pieces)
- Resistance : 270Ω
- Technology : Thick Film
- Package/Case : 1206 (3216M)
- Tolerance : ±1%
- Power Rating : 0.25W
- Temperature Coefficient : ±100ppm/°C
- Series : CRG
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:223-2170
